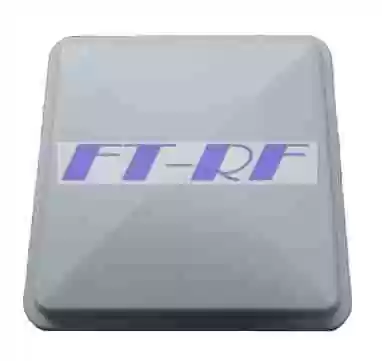

2.4GHz - 2.5GHz 8dbi Panel Directional Outdoor Antenna2.4GHz - 2.5GHz 8dbi Panel Directional Outdoor Antenna2.4GHz - 2.5GHz 8dbi Panel Directional Outdoor Antenna

Model No: PA-242508-NF

Datasheet:Download

  • Dimensions: L130xW130xH25mm
  • Weight: 150g
  • Connector: N-Female
  • Beam-width: Horz.60 deg Vert.46 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • 8dbi Directional Multipoint applications

  • Point to Point Bridge

  • Bluetooth

  • Public Wireless Hotspot

  • WiFi,RFID ,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support are made of aluminum

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain (Avg)

8 dBi (Max:8.7dBi)

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beam-width

46 Deg

Horizontal Beam-width

60 Deg

F /B Greater than 15 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Connector

N-Female



Length x Width(MAX)

130 x 130mm

Height (MAX)

25mm

Antenna Weight (G.W)

150 g

Accessories (G.W)

180 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
