Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
2.4GHz-2.5GHz ISM Band
-
IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan
-
16dBi Directional Multipoint applications
-
Point to Point Bridge
-
Bluetooth
-
Pubic Wireless Hotspot
-
WiFi,RFID ,WLAN
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance design
-
DC Short lightning protection
-
Narrow base station descent
-
Behind and support are made of aluminum
-
Outdoor antenna for public hotspots
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
2400MHz - 2500MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain |
16 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
5 Watts |
|
Vertical Beam-width |
25 Deg |
|
Horizontal Beam-width |
26 Deg |
| FBR | Greater than 29 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
(3x3) Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female |
|

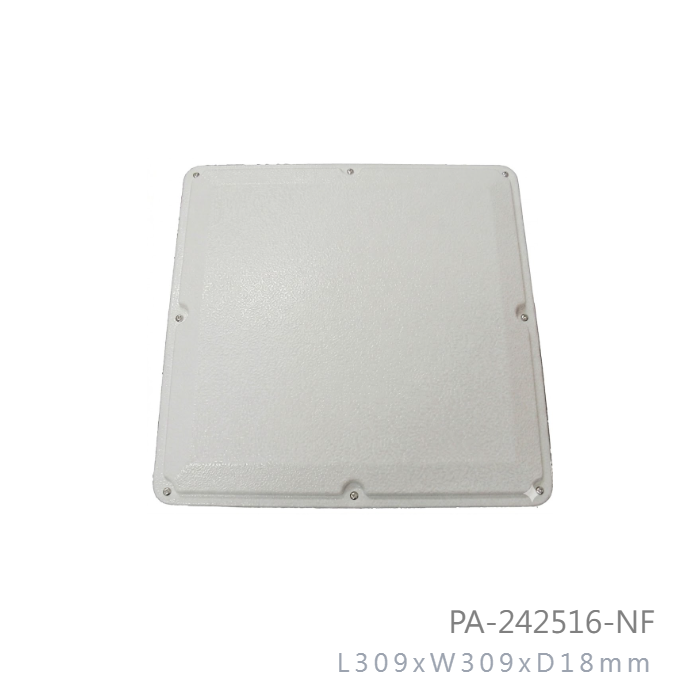

Length x Width(MAX) |
309 x 309mm |
|---|---|
|
Diameter (MAX) |
18mm |
|
Antenna Weight (G.W) |
700 g |
|
Accessories (G.W) |
280 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS+UV |
| Mount Style | Pole Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel and Aluminum |
| Mount Adjustment | 0-30deg |
|
Wind Survival |
Greater than 150MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
