2.4GHz-2.5GHz 13dbi 2x2 MIMO ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna2.4GHz-2.5GHz 13dbi 2x2 MIMO ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna2.4GHz-2.5GHz 13dbi 2x2 MIMO ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna

Model No: PE-2425G13-HVXXX

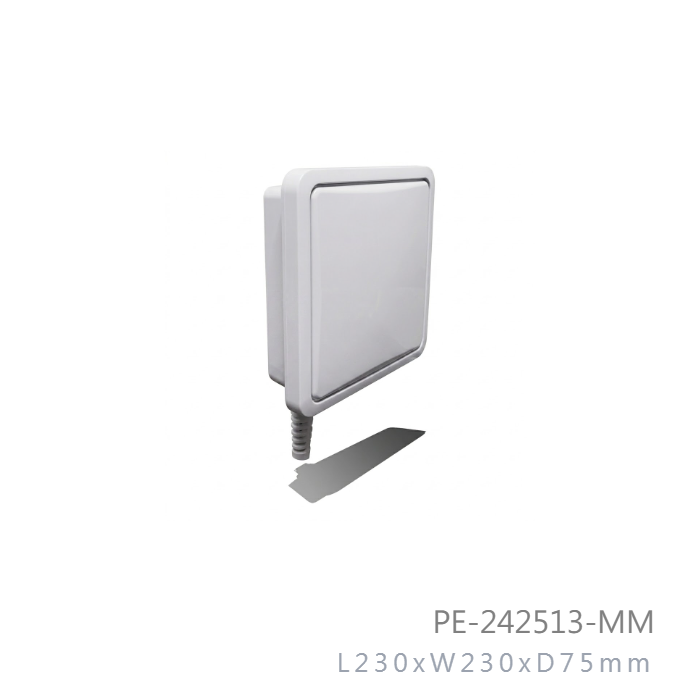

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Port1:Horz.25 deg Vert.24 deg
  • Port2 Horz.24 deg Vert.23 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • 13.5dBi Directional Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Antenna Jumper can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiMAX ,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13.5 dBi

Polarization

Vertical and Horizontal

Maximum Power

2 Watts

Vertical Beam-width

Port1:24 deg

Port2:23 deg

Horizontal Beam-width

Port1:25 deg

Port2:24 deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Dual Polarization

Internal Material

FR4(Taiwan)

RF Cable RG178 / RG174/ other x2
Connector I-PAX or MMCX or Other x2

Waterproof RJ45

20cm RJ45 Male



Length x Width(MAX)

230 x 230mm

Diameter (MAX)

75mm

Inside Length x Width(Least) 190 x 170mm (User Space)
Inside Diameter(Least) 45mm (User Space)

Antenna Weight (G.W)

900 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment Up or Down 20deg
Mount Pole 32mm to 50mm

Wind Survival

Greater than 180MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE



MODEL cable length Connector

PE-2425G14-VHS01

RG178 For 17cm x2

RP-SMA-Male x2

PE-2425G14-VHS02

RG178 For 17cm x2

SMA-Male x2

PE-2425G14-VHM01

RG178 For 17cm x2

R/A MMCX x2

PE-2425G14-VHC01

RG178 For 17cm x2

R/A MCX x2

PE-2425G14-VHS03

RG178 For 17cm x2

R/A RP-SMA x2

PE-2425G14-VHI01

1.3mm For 17cm x2

I-PAX x2

PE-2425G14-VHS11

RG178 For 21cm x2

RP-SMA-Male x2

PE-2425G14-VHS12

RG178 For 21cm x2

SMA-Male x2

PE-2425G14-VHM11

RG178 For 21cm x2

R/A MMCX x2

PE-2425G14-VHC11

RG178 For 21cm x2

R/A MCX x2

PE-2425G14-VHS13

RG178 For 21cm x2

R/A RP-SMA x2

PE-2425G14-VHI10

1.3mm For 21cm x2

I-PAX x2
