2.4GHz-2.5GHz 9.5dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna2.4GHz-2.5GHz 9.5dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna2.4GHz-2.5GHz 9.5dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

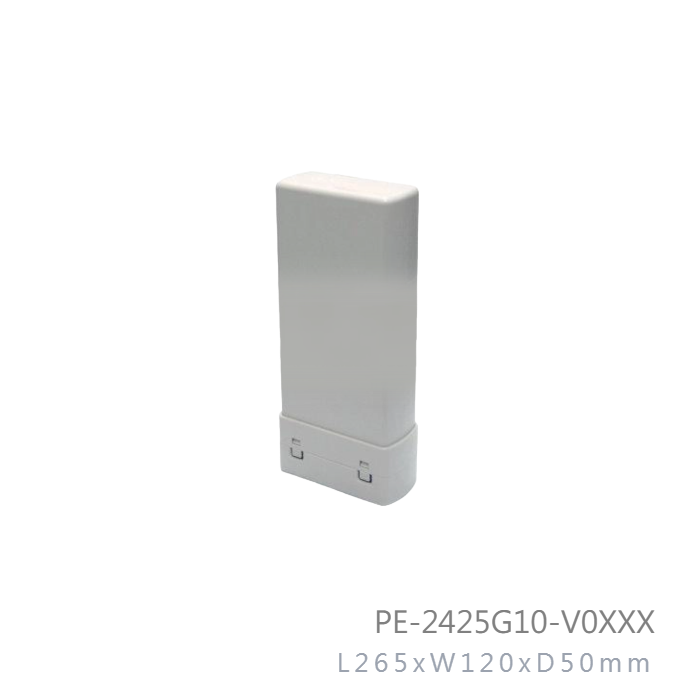

Model No: PE-2425G10-V0XXX

  • Dimensions: L265xW120xD50mm
  • Weight: 0.6 KG
  • Connector: Custom choice
  • Beam-width: Horz.62 deg Vert.38 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wirless Lan

  • 9.5dBi Directional Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Antenna Jumper can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiMAX ,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

9.5 dBi

Polarization

Vertical or Horizontal

Maximum Power

30 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

62 Deg

FBR Greater than 18 dB

Impedance

50 Ohm

Antenna Design

1(1x2) Patch Array

Internal Material

Tin Plate

RF Cable RG178 / RG174/ other
Connector I-PAX or MMCX or Other

Waterproof RJ45

20cm RJ45 Male

Length x Width(MAX)

265 x 120mm

Diameter (MAX)

50mm

Inside Length x Width(Least) 150 x 70mm (User Space)
Inside Diameter(Least) 25mm (User Space)

Antenna Weight (G.W)

400 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount / Wall Mount
Mount Pole 32mm to 50mm

Wind Survival

Greater than 180MPH

Storage Temperature -20 to +60
Operating Temperature -20 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE



MODEL cable length Connector

PE-2425G10-V0S01

RG178 For 17cm

RP-SMA-Male

PE-2425G10-V0S02

RG178 For 17cm

SMA-Male

PE-2425G10-V0M01

RG178 For 17cm

R/A MMCX

PE-2425G10-V0C01

RG178 For 17cm

R/A MCX

PE-2425G10-V0S03

RG178 For 17cm

R/A RP-SMA

PE-2425G10-V0I01

1.3mm For 17cm

I-PAX

PE-2425G10-V0S11

RG178 For 21cm

RP-SMA-Male

PE-2425G10-V0S12

RG178 For 21cm

SMA-Male

PE-2425G10-V0M11

RG178 For 21cm

R/A MMCX

PE-2425G10-V0C11

RG178 For 21cm

R/A MCX

PE-2425G10-V0S13

RG178 For 21cm

R/A RP-SMA

PE-2425G10-V0I10

1.3mm For 21cm

I-PAX
