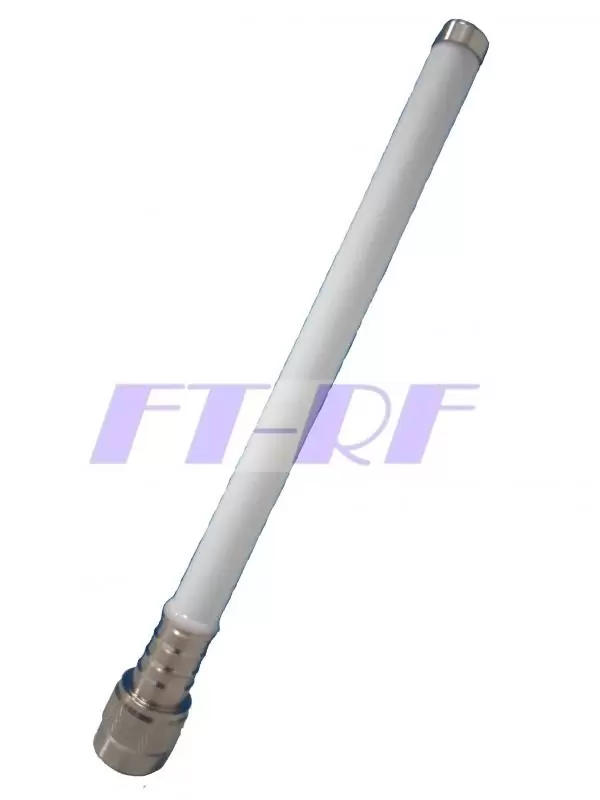

2.4GHz to 2.5GHz 3dBi Super Mini OMNI Directional Outdoor Antenna2.4GHz to 2.5GHz 3dBi Super Mini OMNI Directional Outdoor Antenna2.4GHz to 2.5GHz 3dBi Super Mini OMNI Directional Outdoor Antenna

Model No: OI-242503-NM

  • Dimension : 140x13mm
  • Weight : 53g
  • Connector : N-Male
  • Beam-width : Horz.360 Deg Vert.63 Deg
INQUIRY

Applications:

  • 2.4GHz to 2.5GHz 3dBi Super Mini OMNI Directional Outdoor Antenna
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • Omni Directional Multipoint applications
  • Bluetooth, Point to Multipoint
  • Pubic Wireless Hotspot
  • WiFi, RFID, Zebee
  • Wireless Video Systems

Features:

  • Collinear Vertical Polarization Installation
  • Outdoor antenna for public hotspots
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

2.0 : 1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

3 dBi

Polarization

Vertical

Input Power

5 Watts

Vertical Beam-width

63Deg

Horizontal Beam-width

360Deg

Impedance

50 Ohm

Antenna Design

1/4  Dipole

Internal Material

PCB

Connector

N-Male

Length (MAX)

140 mm

Diameter (MAX)

13 mm

Antenna Weight (G.W)

53 g

ApplicationOutdoor / Indoor

Radome Material

White Fiberglass

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

 Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emssion and other   RoHS
