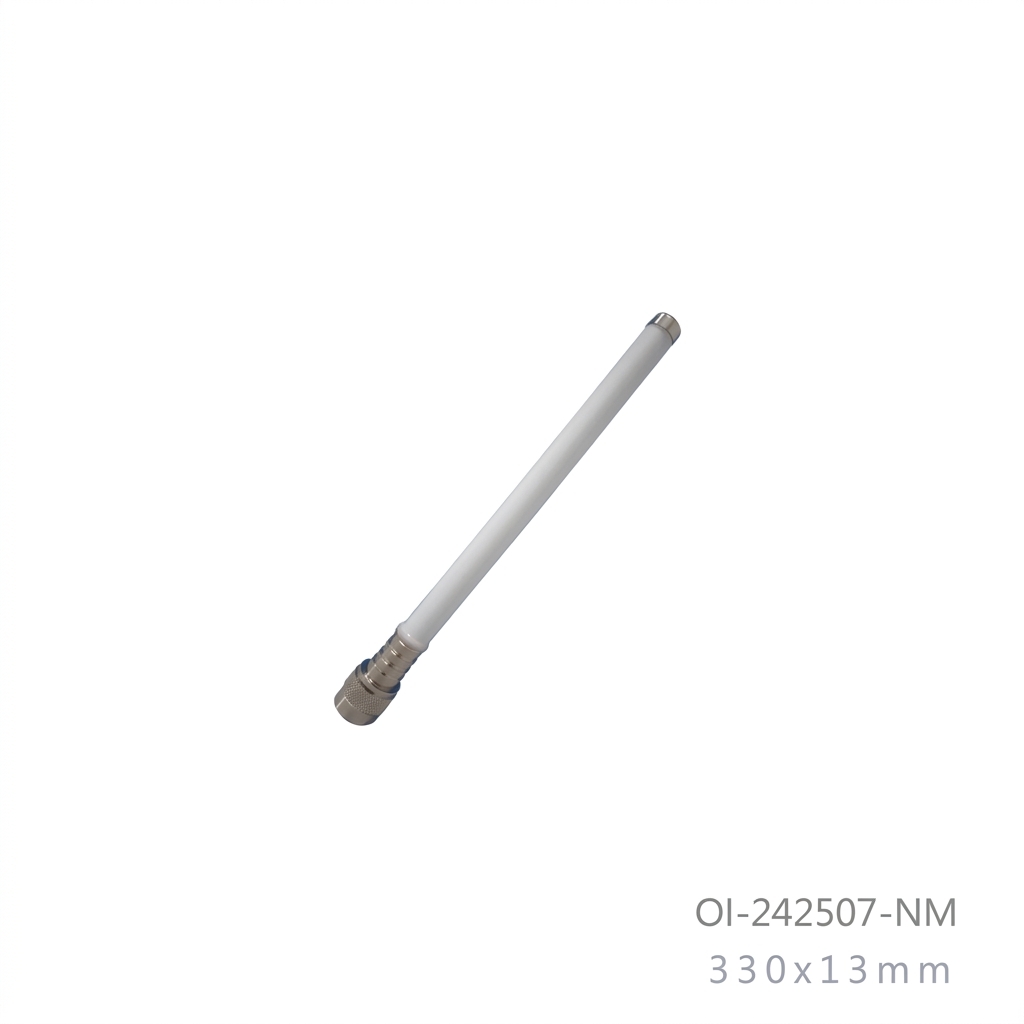

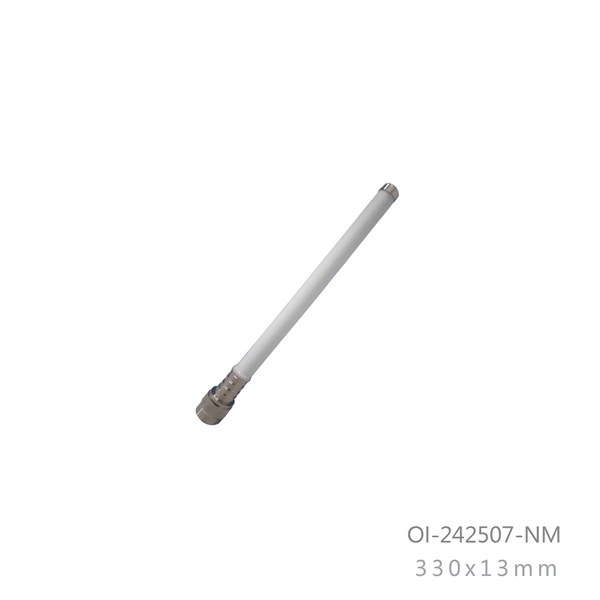

2.4GHz to 2.5GHz 7dBi Super Mini OMNI Directional Outdoor Antenna2.4GHz to 2.5GHz 7dBi Super Mini OMNI Directional Outdoor Antenna2.4GHz to 2.5GHz 7dBi Super Mini OMNI Directional Outdoor Antenna

Model No: OI-242507-NM

Datasheet:Download

  • Dimension : 330x13mm
  • Weight : 75g
  • Connector : N-Male
  • Beam-width : Horz.360 Deg Vert.18 Deg
INQUIRY

Applications and Features

Applications:

  • 2.4GHz - 2.5GHz 7dbi Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • Omni Directional Multipoint applications
  • Bluetooth, Point to Multipoint
  • Pubic Wireless Hotspot
  • WiFi, RFID, Zebe
  • Wireless Video Systems

Features:

  • Collinear Vertical Polarization Installation
  • Outdoor antenna for public hotspots
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

2.0 : 1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

0.5 Watts

Vertical Beam-width

18 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

 Dipole Array

Internal Material

PCB+Spring

Connector

N-Male

Length (MAX)

330 mm

Diameter (MAX)

13 mm

Antenna Weight (G.W)

75 g

Application Outdoor / Indoor

Radome Material

White Fiberglass

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

 Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other   RoHS
