Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2.4GHz - 2.5GHz Band
- IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
- MINI Omni Directional Multipoint applications
- Bluetooth
- Pubic Wireless Hotspot
- WiFi, RFID
- Wireless Video Systems
- MIMO
Features:
- Superior performance
- Lightweight
- Good appearance design
- Base station antennas, miniature design
- DC Short lightning protection
- Installed for Collinear Vertical Polarization
- Behind and support is an aluminum
- Outdoor antenna for public hotspots
- Including tilt and swivel mast mounting kit
- RoHS Compliant
|
Frequency Range |
2400MHz - 2500MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Collinear |
| Radiation | Small Size Omni Directional |
|
Gain (MAX) |
9 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beam-width |
11 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Male |
|

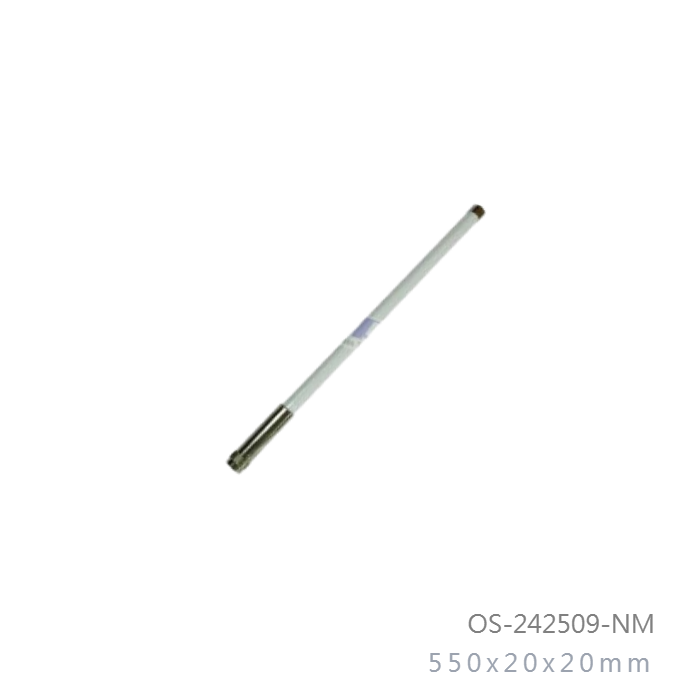

Length (MAX) |
550 mm |
|---|---|
|
Diameter (MAX) |
20 x 20mm |
|
Antenna Weight (G.W) |
245 g |
|
Accessories (G.W) |
5 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
|
Ground Material |
Aluminum or Copper |
| Mount Style | NO |
| Mounting | Optional / Pole Mount / Well Mount |
|
Wind Survival |
Greater then 180MPH |
|
Storage Temperature |
-40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
|
Safety, Emission and other |
RoHS |
