2.2GHz to 2.5GHz Frequency


Application: Wimax, LTE, 2.3GHz, Wireless LAN, IEEE 802.11X

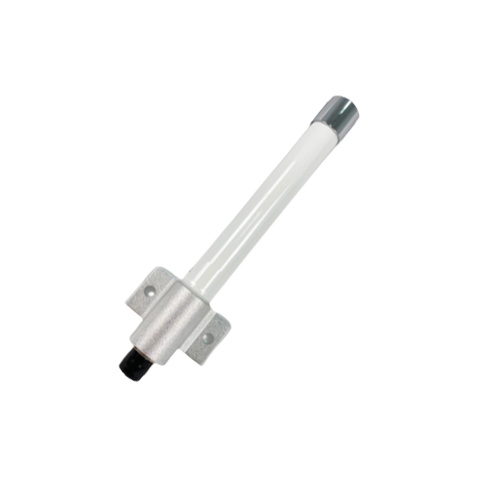

OA-222303-NF

2.2GHz to 2.3GHz 3dBi Outdoor OMNI Directional Antenna

  • Dimension : 220x70x50mm
  • Weight : 280g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.72 deg
View Details
OA-222304-NF

2.2GHz to 2.3GHz 4dBi Outdoor OMNI Directional Antenna

  • Dimension : 350x70x50mm
  • Weight : 300g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.50 deg
View Details

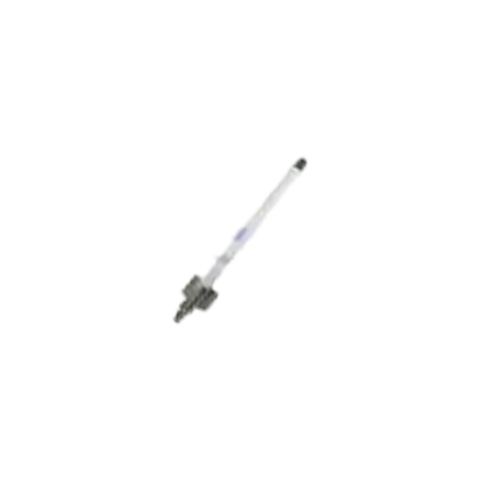

OA-222305-NF

2.2GHz-2.3GHz 5dBi Outdoor OMNI Directional Antenna

  • Dimension : 400x70x50mm
  • Weight : 350g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.38 deg
View Details
OA-222306-NF

2.2GHz-2.3GHz 6dBi Outdoor OMNI Directional Antenna

  • Dimension : 460x70x50mm
  • Weight : 420g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.25 deg
View Details

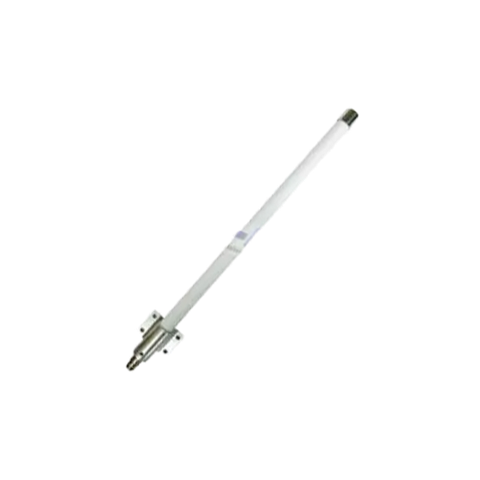

OA-222307-NF

2.2GHz to 2.3GHz 7dBi Outdoor OMNI Directional Antenna

  • Dimension : 510x70x50mm
  • Weight : 510g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.18 deg
View Details
OA-222308-NF

2.2GHz-2.3GHz 8dBi Outdoor OMNI Directional Antenna

  • Dimension : 570x70x50mm
  • Weight : 530g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.13 deg
View Details

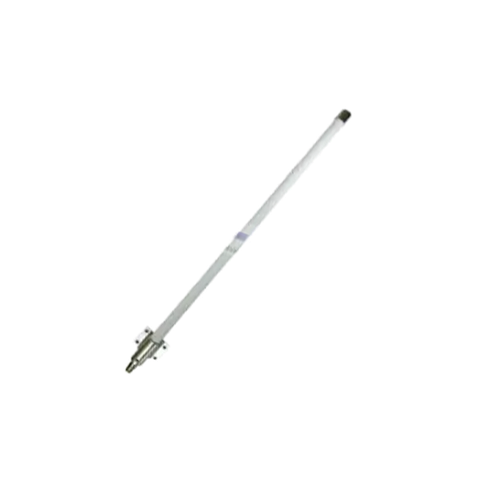

OA-222310-NF

2.2GHz-2.3GHz 10dBi Outdoor OMNI Directional Antenna

  • Dimension : 880x70x50mm
  • Weight : 670g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.9 deg
View Details

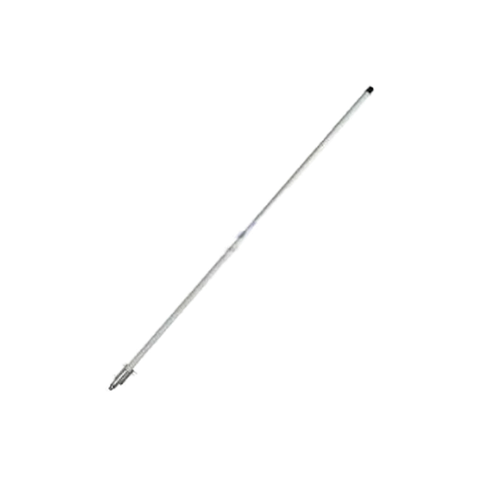

OA-222312-NF

2.2GHz-2.3GHz 12dBi Outdoor OMNI Directional Antenna

  • Dimension : 1200x70x50mm
  • Weight : 870g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.6 deg
View Details

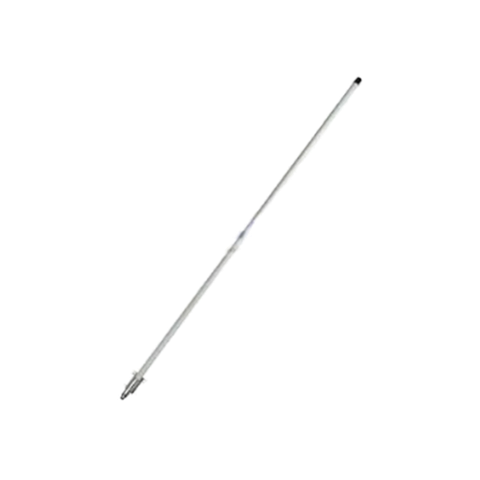

OA-222315-NF

2.2GHz to 2.3GHz 15dBi Outdoor OMNI Directional Antenna

  • Dimension : 1650x70x50mm
  • Weight : 1270g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.5 deg
View Details

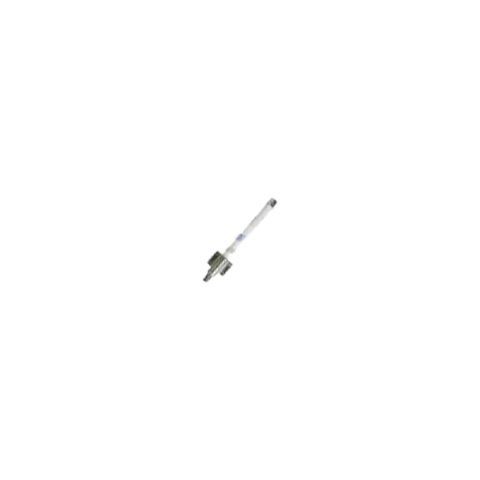

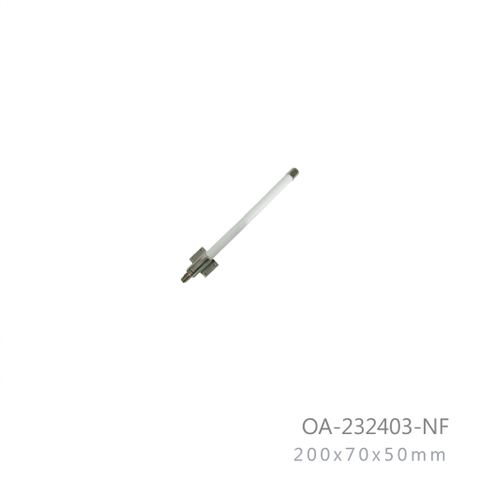

OA-232403-NF

2.3GHz to 2.4GHz 3dBi Outdoor OMNI Directional Antenna

  • Dimension : 200x70x50mm
  • Weight : 250g
  • Connector : N-Female
  • Beam-width : Horz.360Deg Vert.78Deg
View Details

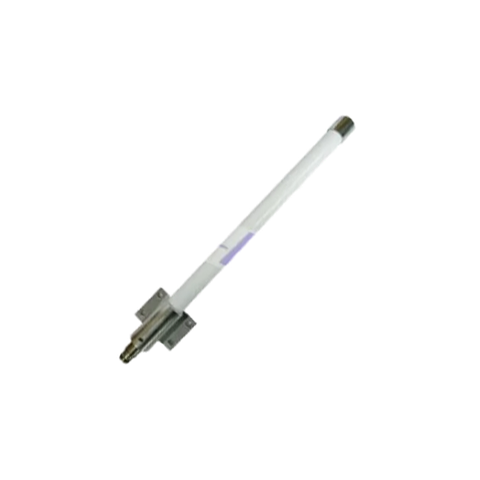

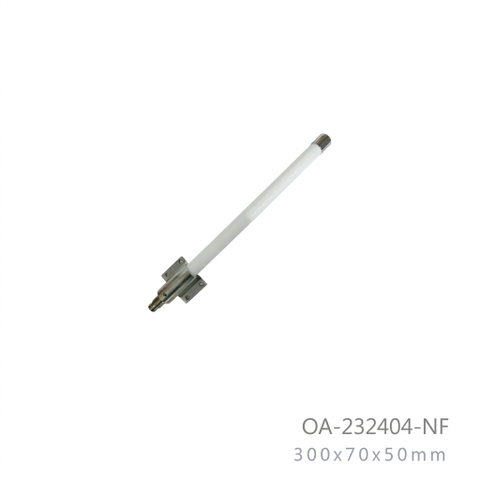

OA-232404-NF

2.3GHz-2.4GHz 4dBi Outdoor OMNI Directional Antenna

  • Dimension : 300x70x50mm
  • Weight : 280g
  • Connector : N-Female
  • Beam-width : Horz.360 Deg Vert.50 Deg
View Details

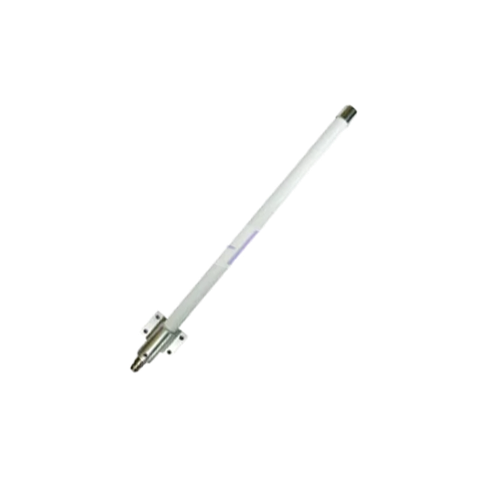

OA-232405-NF

2.3GHz to 2.4GHz 5dBi Outdoor OMNI Directional Antenna

  • Dimension : 390x70x50mm
  • Weight : 300g
  • Connector : N-Female
  • Beam-width : Horz.360 Deg Vert.38 Deg
View Details
