Professional LTE Low-Band Solutions

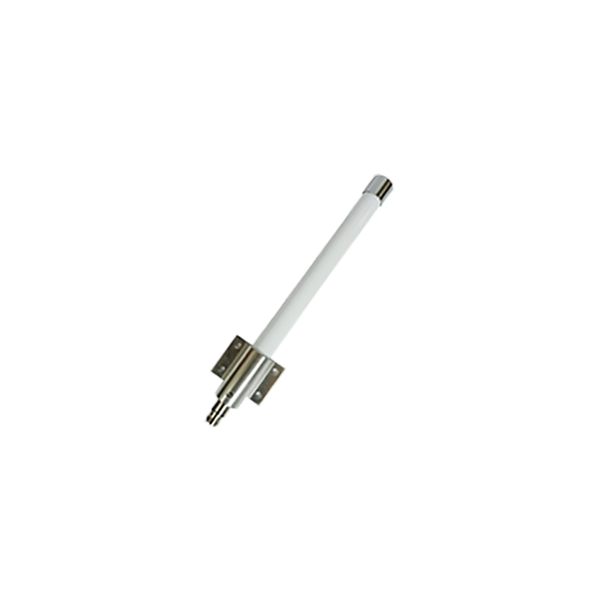

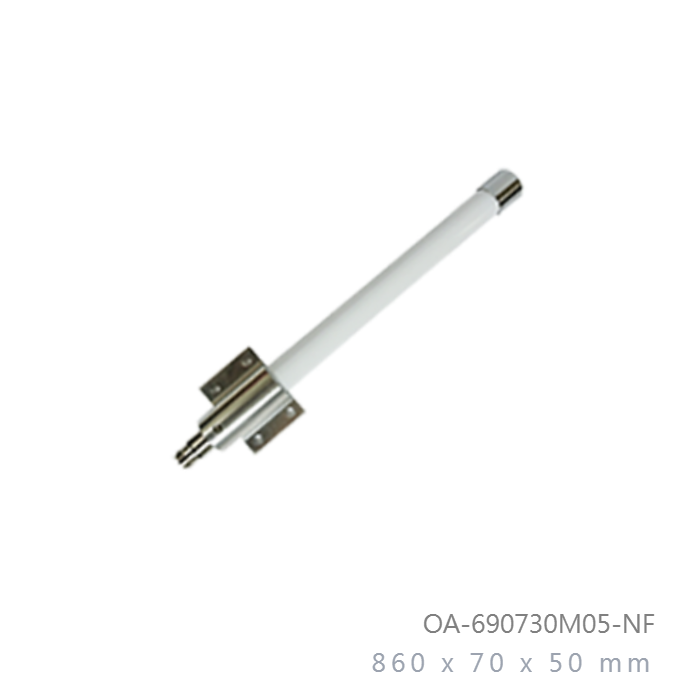

690 - 730 MHz Compact Collinear Omni Antenna
A professional industrial-grade collinear dipole array engineered for 360-degree multipoint distribution. Optimized for 700MHz band public wireless infrastructure, hotspots, and video systems requiring reliable vertical polarization in a compact form factor.
Electrical Specifications
| Frequency Range | 690 MHz – 730 MHz |
| V.S.W.R (MAX) | ≤ 1.5 : 1 |
| Peak Gain | 4 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 200 Watts |
| Beam-width (H/V) | Horz. 360° / Vert. 50° |
| Antenna Design | Collinear Dipole Array (Copper Internal) |
Mechanical & Environmental
| Dimensions | 860 x 70 x 50 mm |
| Total Weight (G.W.) | 870 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
Stable 360° Multipoint Coverage
Delivers a consistent 4 dBi gain with a wide 50-degree vertical beam-width, ensuring robust signal distribution for public wireless hotspots and MMDS applications.
Integrated Surge Protection
Features built-in DC-Short lightning protection to safeguard connected radio equipment against atmospheric electrical discharge and static buildup in outdoor environments.
Tactical Mounting Solutions
Includes a professional tilt and swivel mast mounting kit (Stainless Steel/Aluminum), providing precise vertical adjustment for optimal signal alignment in the field.
Extreme Wind Survival
Constructed with a UV-resistant fiberglass radome and aluminum support structure, engineered to survive wind speeds over 150 MPH and extreme outdoor thermal stress.
