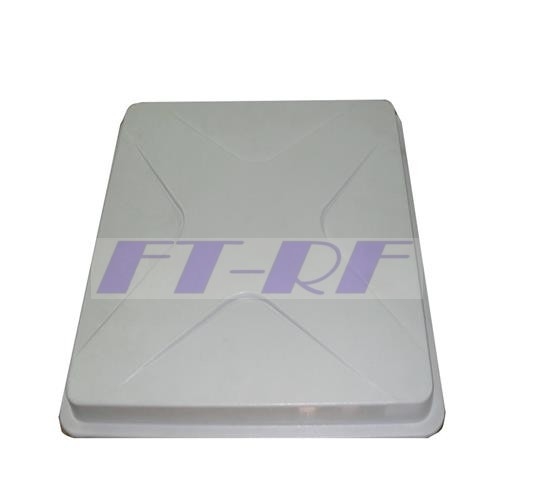

915MHz 12dBi High-Gain Panel Antenna
Model: PA-915M12-NF | Patch Array | N-Female Connector
The PA-915M12-NF is a premium directional patch array antenna designed for the 900MHz ISM band, specifically tailored for LoRaWAN gateways and long-distance RFID systems. With an impressive 12 dBi gain and a highly directional beam pattern, it provides exceptional range and interference rejection. Housed in a UV-stabilized gray ABS radome with an aluminum support structure, it offers industrial-grade Signal Integrity and reliability for critical wireless infrastructure.
Core Electrical Specifications
| Frequency Range | 902MHz to 928MHz |
| V.S.W.R (MAX) | 1.5 : 1 (at 915MHz) |
| Average Gain | 12 dBi |
| Polarization | Vertical or Horizontal |
| Beam-width | Horz. 36° / Vert. 42° |
| Maximum Power | 15 Watts |
| Impedance | 50 Ohm |
Mechanical & Environmental Parameters
| Dimensions (L x W x H) | 415 x 405 x 45 mm |
| Antenna Weight | 2.0 kg |
| Radome Material | Gray ABS + UV Protection |
| Connector Type | N-Female |
| Mounting Style | Pole Mount / Wall Mount |
| Mount Adjustment | ± 28 Degrees |
| Wind Survival | > 150 MPH |
Key Tactical & Engineering Features
High-Gain Patch Array
Utilizes a multi-patch array layout on premium FR4 material to achieve a narrow 36° horizontal beam-width, significantly extending the effective range of 915MHz links.
Integrated Surge Protection
Equipped with a DC-Short lightning protection circuit to safeguard connected gateways and radios from static build-up and atmospheric surges.
Precision Tilt-Adjustment
The included heavy-duty mounting kit allows for ± 28° of vertical and horizontal alignment, essential for optimizing Point-to-Point bridge links over long distances.
Industrial Grade Construction
Features an aluminum back-plate and UV-resistant radome designed to withstand extreme wind loads (>150MPH) and harsh outdoor climates without performance degradation.
