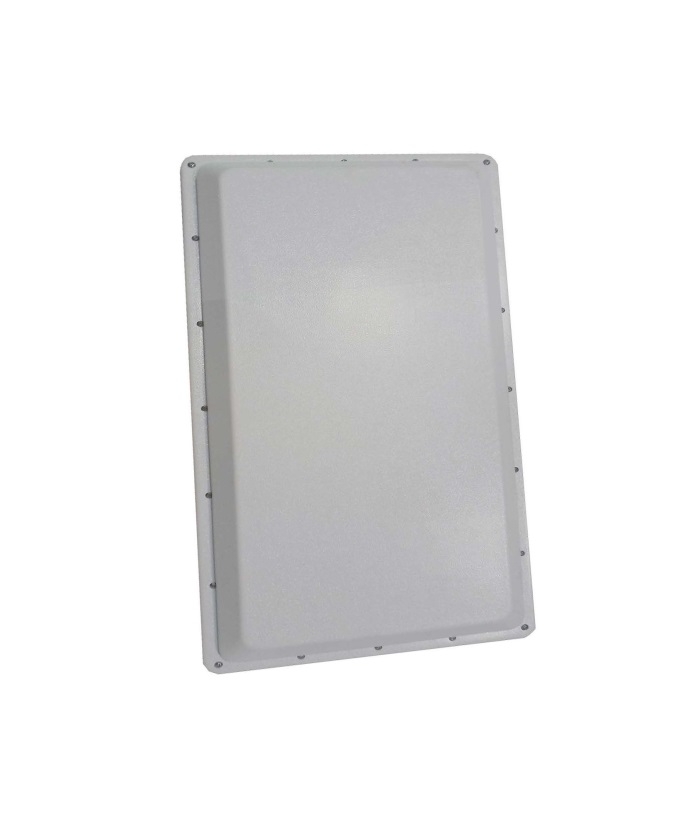

902MHz to 928MHz 8dBi RHCP Circular polarization Panel Directional Antenna902MHz to 928MHz 8dBi RHCP Circular polarization Panel Directional Antenna902MHz to 928MHz 8dBi RHCP Circular polarization Panel Directional Antenna

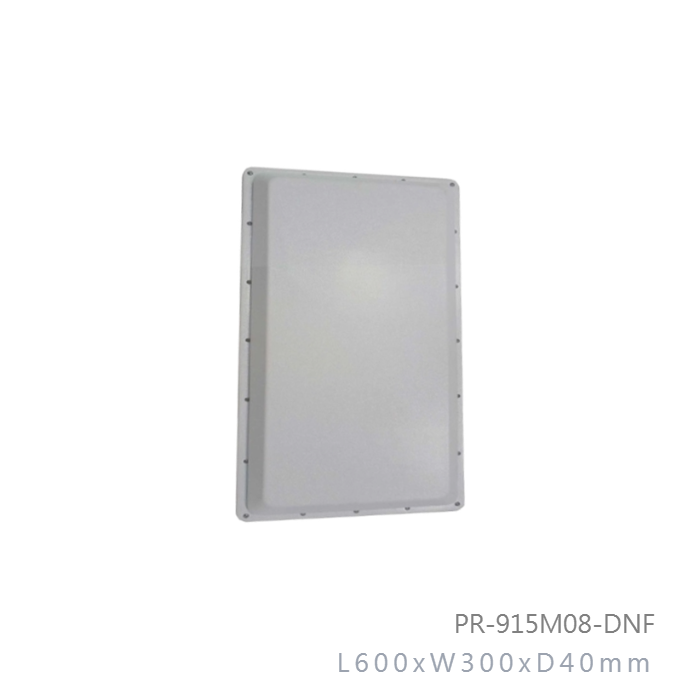

Model No: PR-915M08-DNF

Datasheet:Download

  • Dimension : L600xW300xD40mm
  • Weight : 1.8 KG
  • Connector : N-Femalex2
  • Beam-width : Port1. H: 68Deg V: 57Deg
  • Port2.H: 70Deg V: 58Deg
INQUIRY

Applications:

  • 902MHz to 928MHz 8dBi RHCP Circular polarization Panel Directional Antenna
  • Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

902MHz - 928MHz

V.S.W.R (MAX)

915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Patch Type

Radiation

Directional

Gain (Avg)

8 dBi

Polarization

Circular polarization

Maximum Power

15 Watts

Vertical Beam-width

Port1. 57 Deg

Port2. 58Deg

Horizontal Beam-width

Port1. 68 Deg

Port2. 70Deg

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Connector

N-Female*2

LxWxH

600x300x40mm

Antenna Weight

1800 g

Accessories

300 g

Application

Indoor / Outdoor

Radome Material

White ABS

Mount Style

Pole Mount

Parts Material

Aluminum

Mounting

Stainless Steel

Mount Adjustment

 +-28deg

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
