Descriptions
Professional LTE Low-Band Solutions

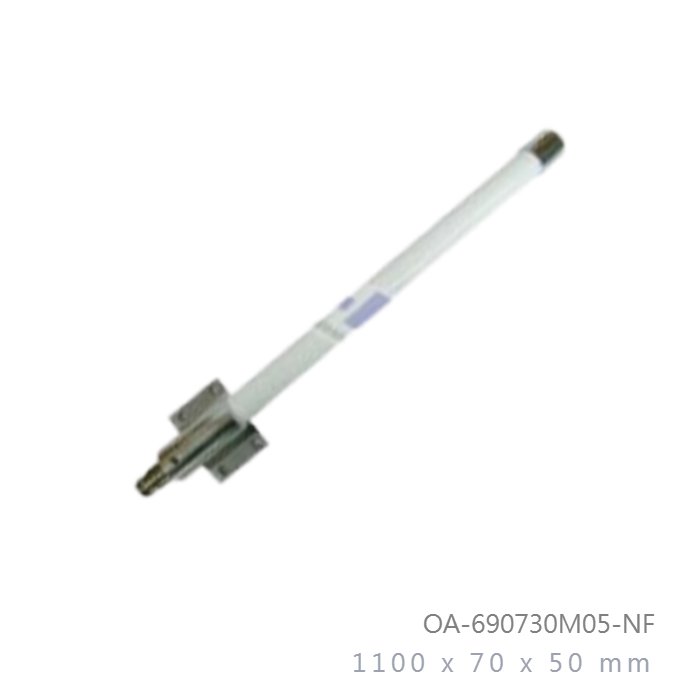

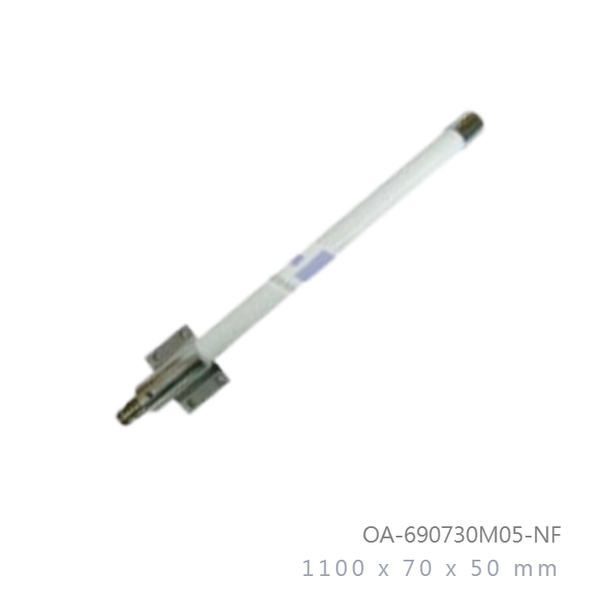

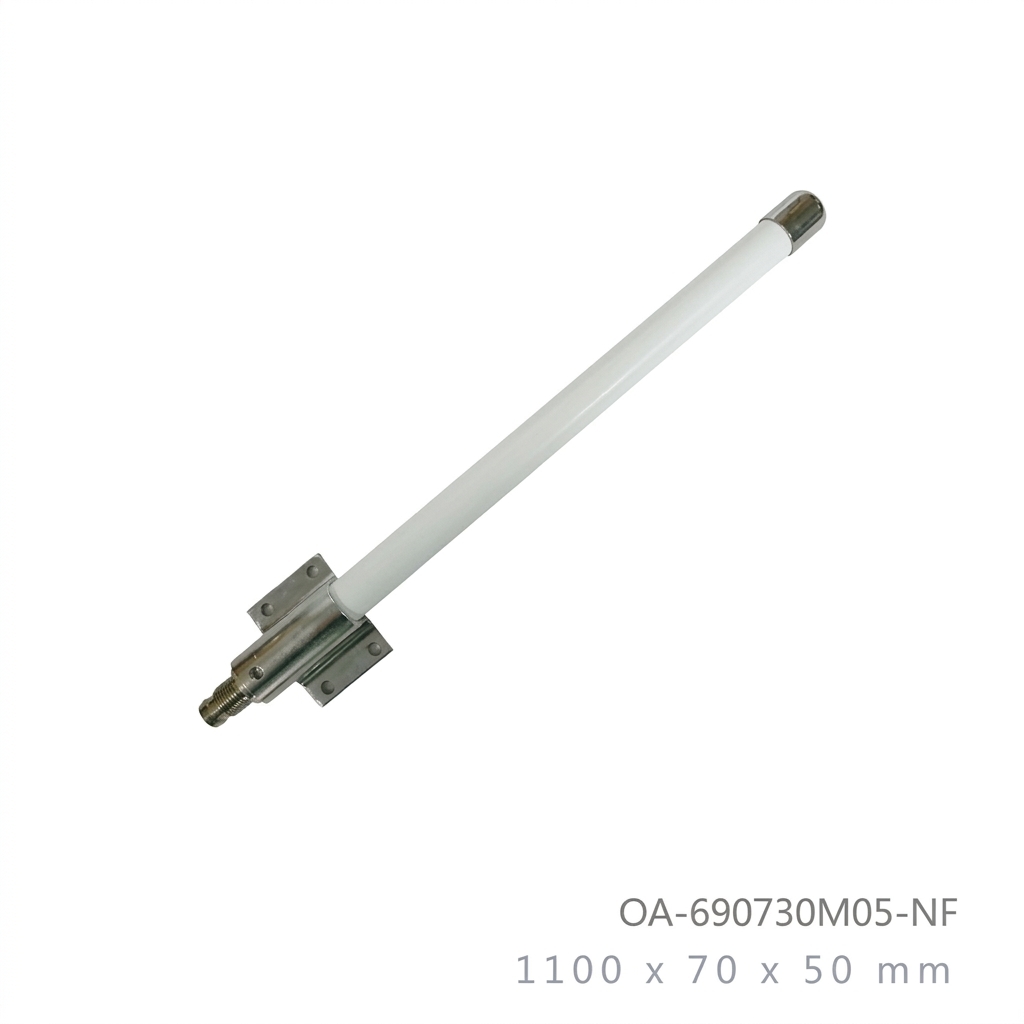

690 - 730 MHz Industrial Collinear Omni Antenna
A professional-grade collinear dipole array engineered for 360-degree multipoint distribution in the 700MHz band. Optimized for public wireless infrastructure, long-range hotspots, and industrial wireless video systems requiring consistent signal reliability.
Electrical Specifications
| Frequency Range | 690 MHz – 730 MHz |
| V.S.W.R (MAX) | ≤ 1.5 : 1 |
| Peak Gain | 5 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 200 Watts |
| Beam-width (H/V) | Horz. 360° / Vert. 38° |
| Antenna Design | Collinear Dipole Array (Copper Internal) |
Mechanical & Environmental
| Dimensions | 1100 x 70 x 50 mm |
| Total Weight (G.W.) | 1170 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (UV Protected) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
Stable Omni Radiation
Delivers a consistent 5 dBi gain with a full 360-degree horizontal pattern, providing reliable coverage for multipoint public wireless networks and high-density hotspot applications.
Integrated Surge Protection
Built-in DC-Short lightning protection safeguards sensitive connected radio equipment against atmospheric electrical discharge and static buildup in outdoor environments.
Tactical Mounting Kit
Includes a professional-grade tilt and swivel mast mounting kit, allowing for precise vertical adjustment to ensure optimal signal propagation across varied terrains.
Rugged Industrial Build
Constructed with a UV-resistant fiberglass radome and aluminum backplate, engineered to survive wind speeds over 150 MPH and extreme outdoor thermal stress.
