Descriptions
Professional LTE Low-Band Solutions

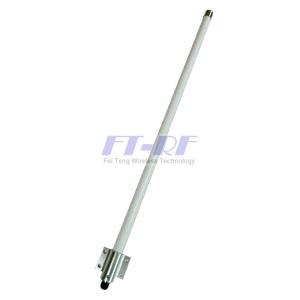

690 - 730 MHz High-Gain Collinear Omni Antenna
A professional-grade high-performance collinear dipole array designed for 360-degree multipoint distribution. Engineered for superior stability in the 700MHz band, it is optimized for public wireless infrastructure, long-range hotspots, and industrial video systems.
Electrical Specifications
| Frequency Range | 690 MHz – 730 MHz |
| V.S.W.R (MAX) | ≤ 1.5 : 1 |
| Peak Gain | 7 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 200 Watts |
| Beam-width (H/V) | Horz. 360° / Vert. 18° |
| Antenna Design | Collinear Dipole Array (Copper Internal) |
Mechanical & Environmental

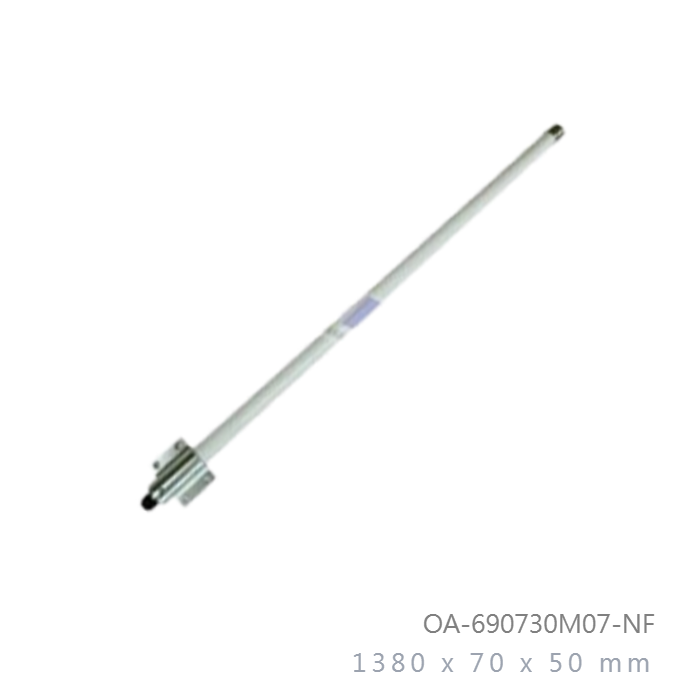

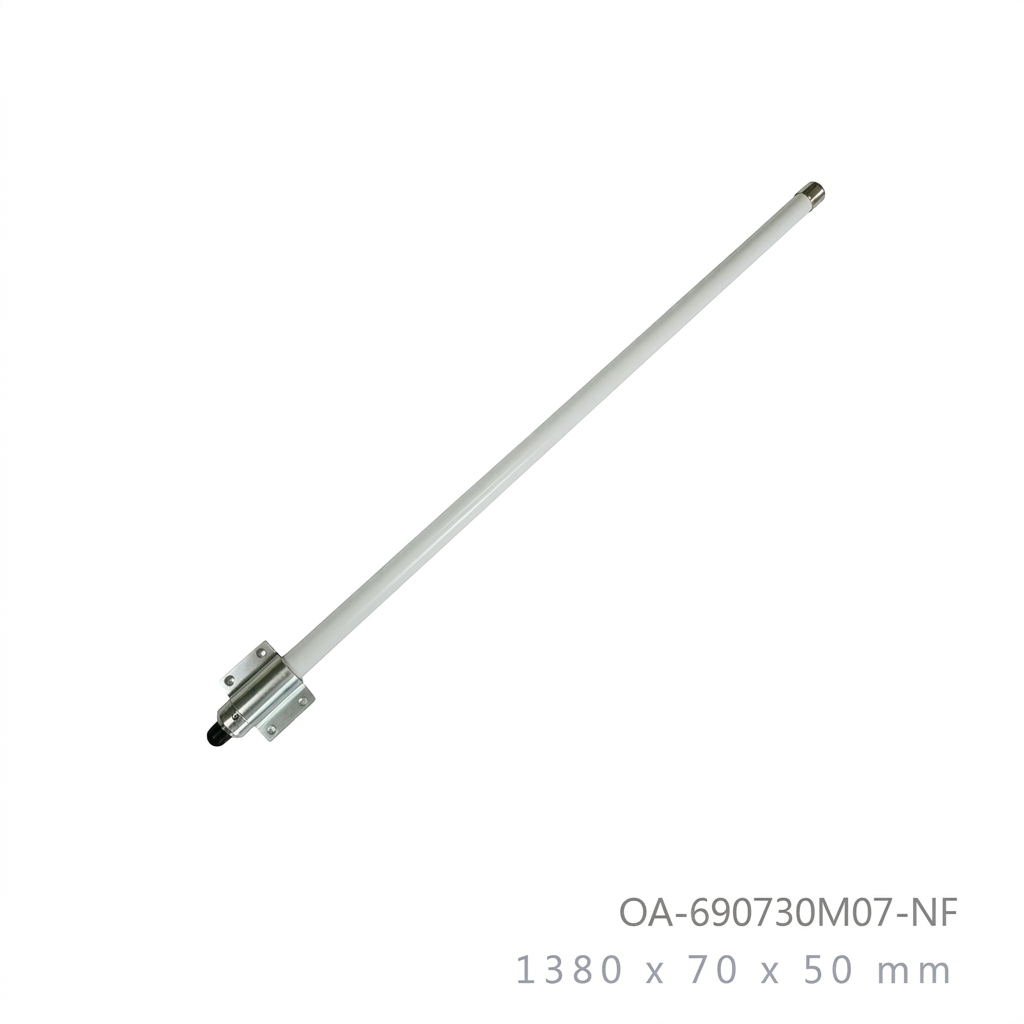

| Dimensions | 1380 x 70 x 50 mm |
| Total Weight (G.W.) | 1670 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
High-Gain Omni Radiation
Delivers a stable 7 dBi gain with a tight 18-degree vertical beam-width, providing exceptional horizontal coverage for multipoint public wireless and MMDS applications.
Integrated Surge Protection
Built-in DC-Short lightning protection ensures maximum safety for connected RF equipment against atmospheric electrical discharge and static buildup.
