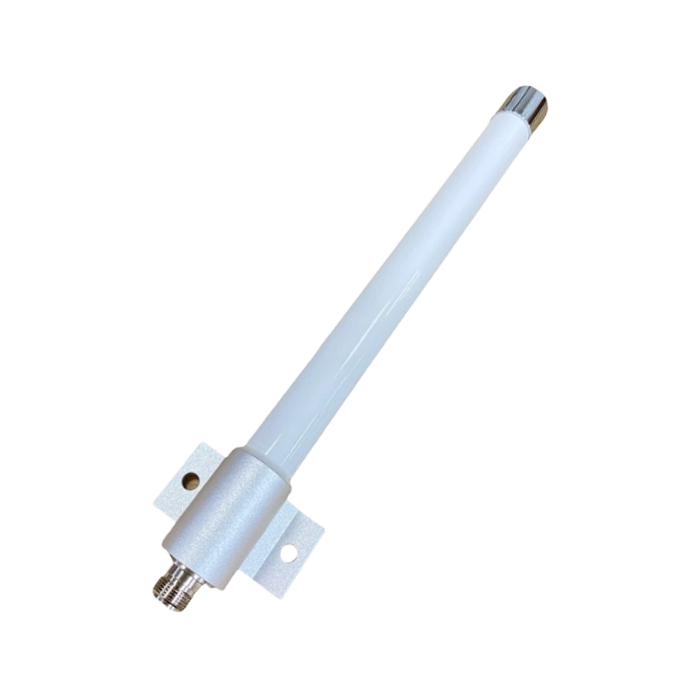

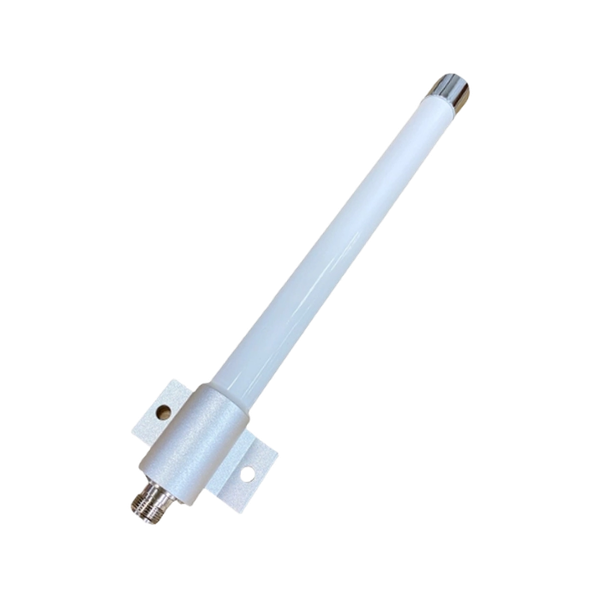

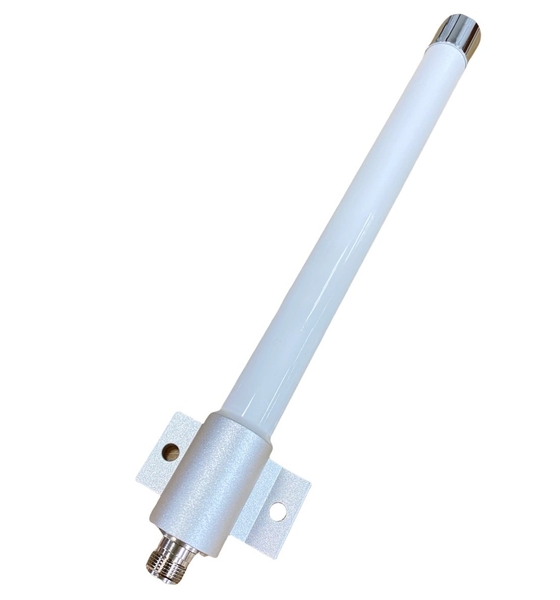

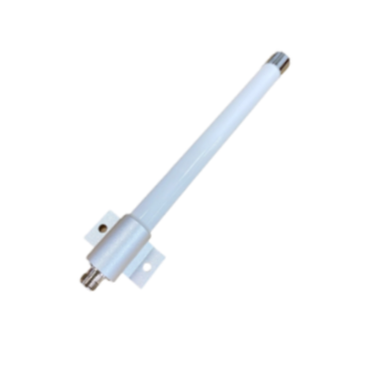

698MHz to 960MHz and 1710MHz to 2170MHz 2.5dBi/ 3.5dBi Multi-Frequency OmniDirectional Antenna698MHz to 960MHz and 1710MHz to 2170MHz 2.5dBi/ 3.5dBi Multi-Frequency OmniDirectional Antenna698MHz to 960MHz and 1710MHz to 2170MHz 2.5dBi/ 3.5dBi Multi-Frequency OmniDirectional Antenna

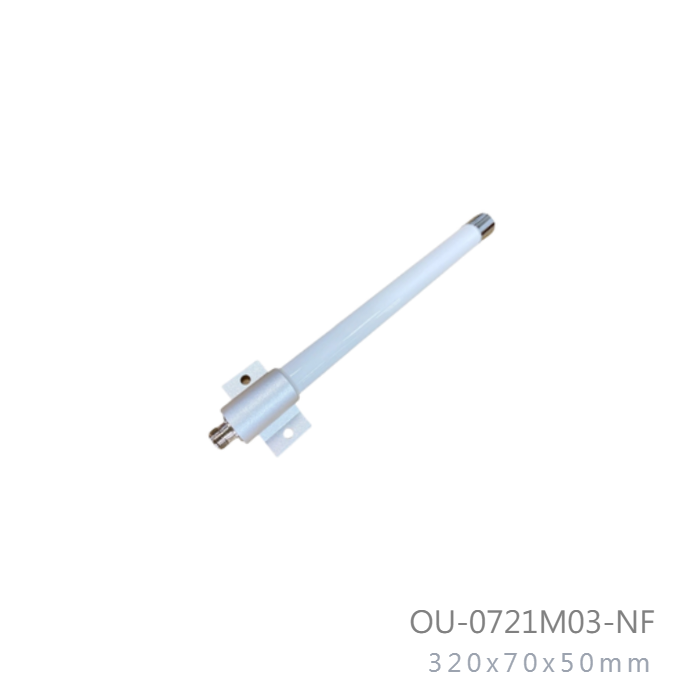

Model No: OU-0721M03-NF

Datasheet:Download

  • Dimension : 320x70x50mm
  • Weight : 150g
  • Connector : N-Female
  • Gain: 2.5dbi / 3.5 dBi
INQUIRY

Applications:

  • 698MHz to 960MHz and 1710MHz to 2170MHz 2.5dBi/ 3.5dBi Multi-Frequency Omni Directional Antenna
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

698MHz to 960MHz and

1710MHz to 2170MHz

V.S.W.R (Avg)

2.5 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (Avg)

2.5dbi / 3.5 dBi

Polarization

Vertical

Maximum Power

150 Watts

Vertical Beam-width

698 to 960 MHz : 59Deg

1710 to 2170 MHz: 37Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Female

Length

320mm

WxL

70 x 50mm

Antenna Weight

150 g

Accessories

35 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety, Emission and other

RoHS
