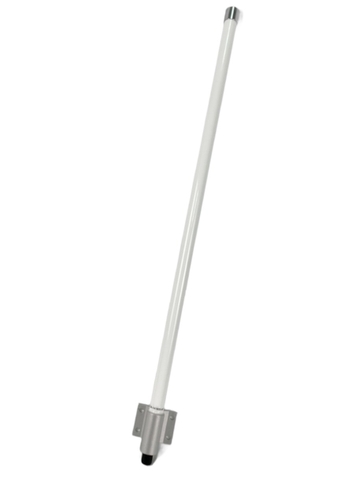

860 MHz to 870 MHz 6dBi Omni Directional Antenna Spring designed (EU868)860 MHz to 870 MHz 6dBi Omni Directional Antenna Spring designed (EU868)860 MHz to 870 MHz 6dBi Omni Directional Antenna Spring designed (EU868)

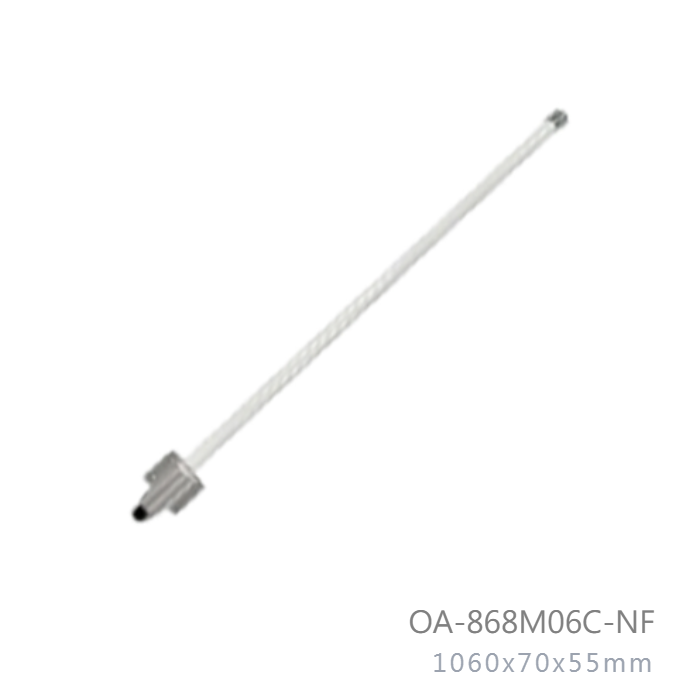

Model No: OA-868M06C-NF

Datasheet:Download

  • Dimension : 1095x70x55mm
  • Weight : 481g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.20 deg
INQUIRY

Applications:

  • 860MHz to 870MHz Band (LoRa EU868)
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant
  • Have spring

Frequency

860MHz to 870MHz

V.S.W.R

≤ 2.0:1

Antenna Type

Omni

Radiation

Directional

Gain (MAX)

6 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

20 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole spring array

Internal Material

Copper

Connector

N-Female

Length

1095mm+/-5mm

Diameter

70 x 55 mm

Antenna Weight

481 g

Accessories

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

U type Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety,Emission and other

CE, FCC, RoHS
