860 MHz to 870 MHz 5dBi Omnidirectional Outdoor Antenna Spring Designed (EU868)860 MHz to 870 MHz 5dBi Omnidirectional Outdoor Antenna Spring Designed (EU868)860 MHz to 870 MHz 5dBi Omnidirectional Outdoor Antenna Spring Designed (EU868)

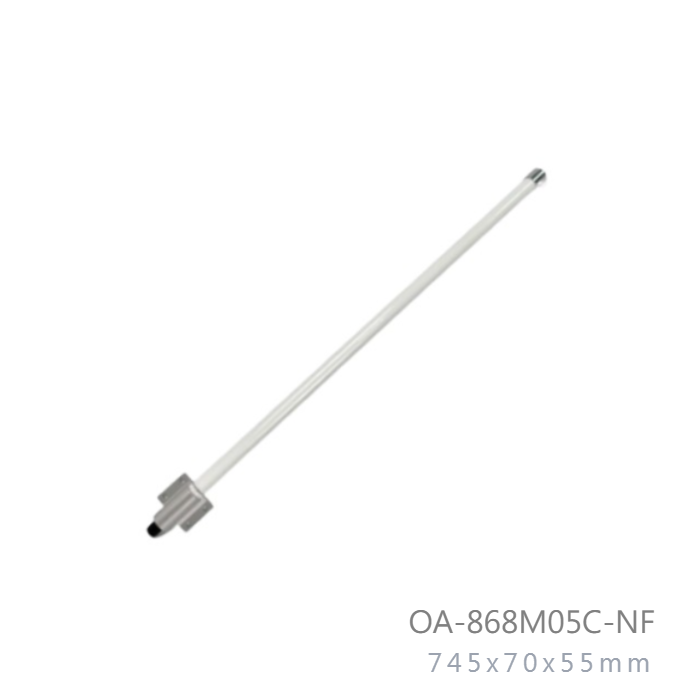

Model No: OA-868M05C-NF

Datasheet:Download

  • Dimension : 745x70x50mm
  • Weight : 392g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.26 deg
INQUIRY

Applications:

  • 860MHz to 870MHz Band, LoRa EU868
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Aluminum Mounting Brackets
  • Outdoor antenna for public
  • Design with spring inside
  • RoHS Compliant

Frequency

860MHz to 870MHz

V.S.W.R

≤ 2.0:1

Antenna Type

Omni

Radiation

Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beamwidth

26 Deg

Horizontal Beamwidth

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole spring array

Internal Material

Copper

Connector

N-Female

Dimension

745x70x50mm

Antenna Weight (N.W)

392 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

U type Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing
