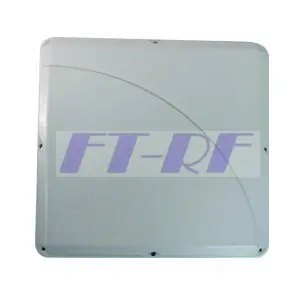

1100MHz to 1300MHz 14dBi Vertical or Horizontal Panel Directional Antenna1100MHz to 1300MHz 14dBi Vertical or Horizontal Panel Directional Antenna1100MHz to 1300MHz 14dBi Vertical or Horizontal Panel Directional Antenna

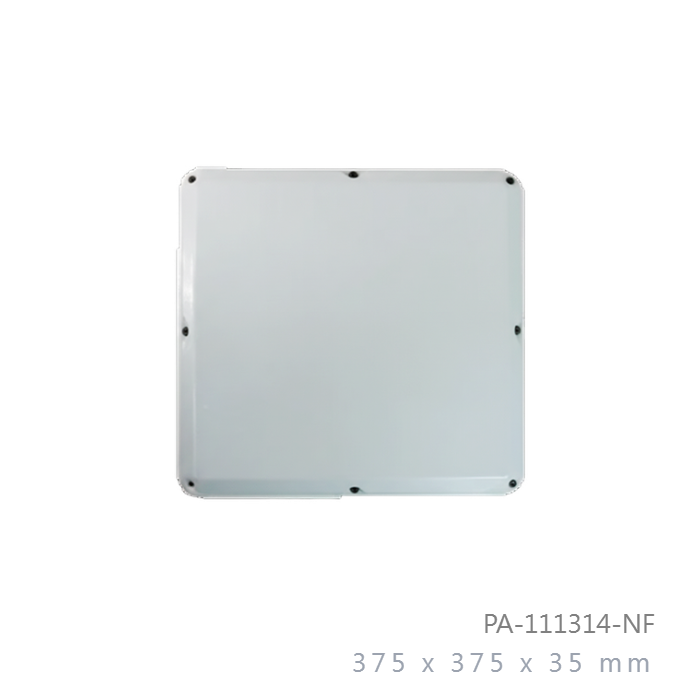

Model No: PA-111314-NF

Datasheet:Download

  • Dimension : 375x375x35mm
  • Weight : 1050g
  • Connector : N-Female
  • Beam-width : Horz.36 deg Vert.36 deg
INQUIRY

Applications:

  • 1100MHz to 1300MHz 14dBi Vertical or Horizontal Panel Directional Antenna
  • Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

1100MHz - 1300MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

RadiationDirectional

Gain (Avg)

14 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beam-width

36 Deg

Horizontal Beam-width

36 Deg

F / B35 dB

Impedance

50 Ohm

Antenna Design

Patch Array(2x2)

Internal Material

FR4(Taiwan)

Implant resistanceDC Groud

Connector

N-Female

Length x Width

375 x 375mm

Diameter

35mm

Antenna Weight (N.W)

1050 g

Accessories (N.W)

300 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment+- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

 RoHS
