1200MHz to 1400MHz 9dBi Vertical or Horizontal Panel Directional Antenna1200MHz to 1400MHz 9dBi Vertical or Horizontal Panel Directional Antenna1200MHz to 1400MHz 9dBi Vertical or Horizontal Panel Directional Antenna

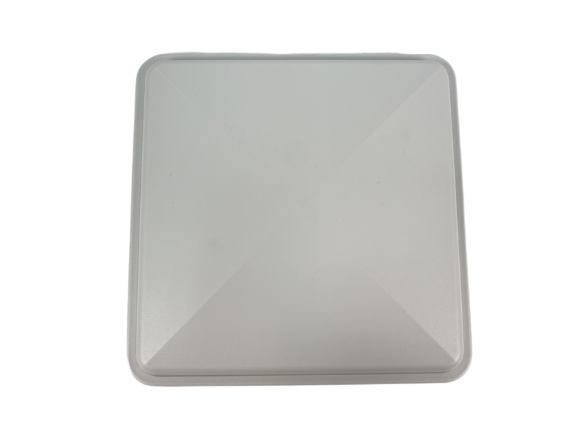

Model No: PA-121409-NF

Datasheet:Download

Mechanical Drawing:Download

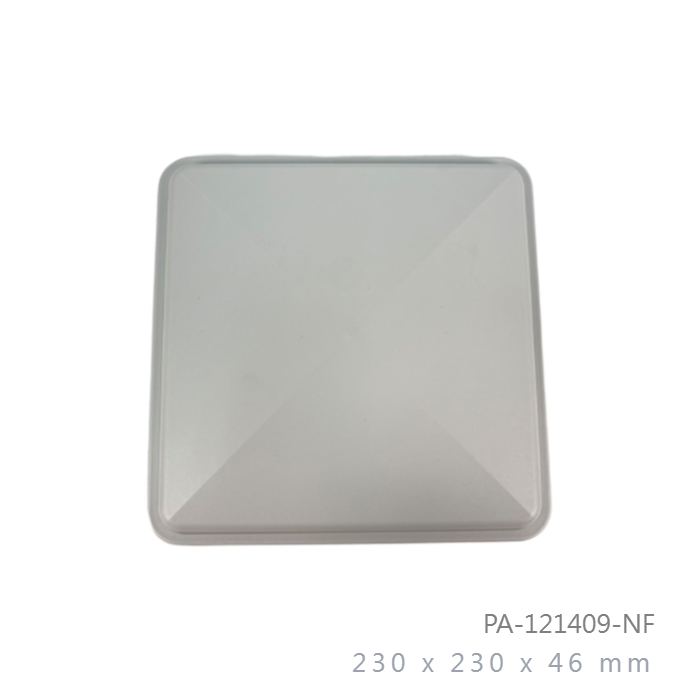

  • Dimension : 230x230x46mm
  • Weight : 715g
  • Connector : N-Female
  • Beam-width : Horz.52 deg Vert.47 deg
INQUIRY

Applications:

  • 1200MHz - 1400MHz Band
  • Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

1200MHz - 1400MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain (Avg)

9 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beam-width

47 Deg

Horizontal Beam-width

52 Deg

F / B Greater than 17 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Implant resistance DC Ground

Connector

N-Female

Length x Width

230 x 230mm

Diameter

46mm

Antenna Weight (N.W)

715 g

Accessories (N.W)

280 g

Application Indoor / Outdoor

Radome Material

White ABS + UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminium
Mount Adjustment 0-30 Deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
