2.4GHz-2.5GHz 10dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna2.4GHz-2.5GHz 10dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna2.4GHz-2.5GHz 10dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna

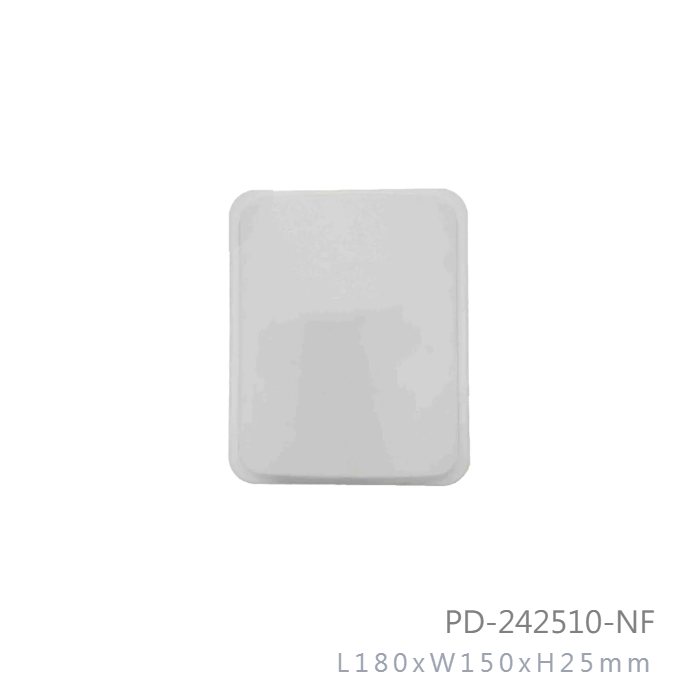

Model No: PD-242510-NF

  • Dimensions: L180xW150xH25mm
  • Weight: 220g
  • Connector: N-Female x2
  • -3dB Beam width: Vertical:+45: 40 Deg / -45: 39 Deg
  • Horizontal: :-45: 68 Deg / +45: 68 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • Directional Multipoint applications

  • MINO 2x2 TX/RX

  • Pubic Wireless Point to Point Bridge

  • WiFi,RFID

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support are made of aluminum

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation +-45 degree

Gain

10 dBi

Polarization

Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

-45: 39Deg

+45: 40Deg

Horizontal Beam-width

-45: 68Deg

+45: 68 Deg

FBR               25dB
Cross Polarization               27dB

Impedance

50 Ohm

Antenna Design

 Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2



Length x Width(MAX)

180 x 150mm

Height (MAX)

25mm

Antenna Weight (G.W)

220 g

Accessories (G.W)

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater then 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, WEEE, FCC
