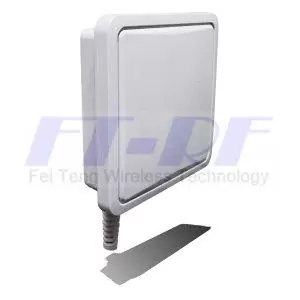

2.4GHz-2.5GHz 13.5dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

Model No: PE-2425G14-V0XXX

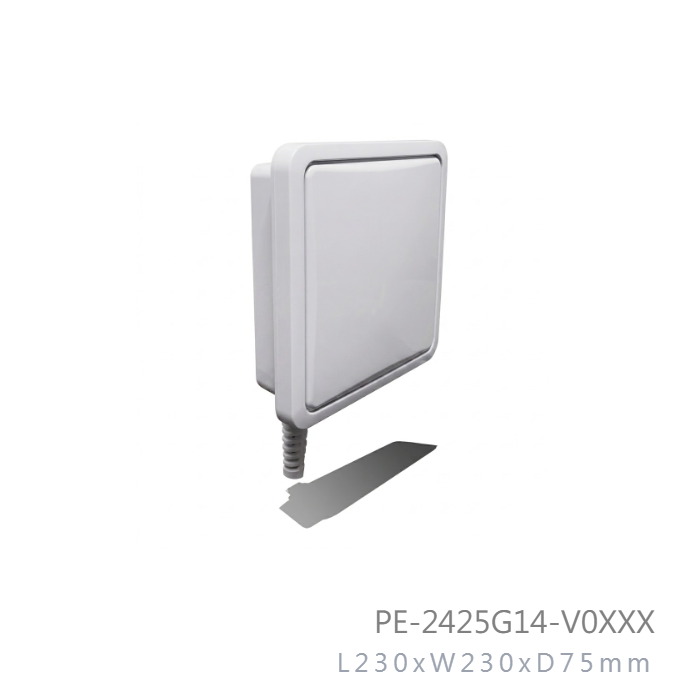

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Horz.28 deg Vert.28 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wirless Lan

  • 13.5dBi Directional Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Antenna Jumper can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiMAX ,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13.5 dBi

Polarization

Vertical or Horizontal

Maximum Power

2 Watts

Vertical Beam-width

28 Deg

Horizontal Beam-width

28 Deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

RF Cable RG178 / RG174/ other
Connector I-PAX or MMCX or Other

Waterproof RJ45

20cm RJ45 Male



Length x Width(MAX)

230 x 230mm

Diameter (MAX)

75mm

Inside Length x Width(Least) 190 x 170mm (User Space)
Inside Diameter(Least) 45mm (User Space)

Antenna Weight (G.W)

900 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment Up or Down 20deg
Mount Pole 32mm to 50mm

Wind Survival

Greater then 180MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE



MODEL cable length Connector

PE-2425G14-V0S01

RG178 For 17cm

RP-SMA-Male

PE-2425G14-V0S02

RG178 For 17cm

SMA-Male

PE-2425G14-V0M01

RG178 For 17cm

R/A MMCX

PE-2425G14-V0C01

RG178 For 17cm

R/A MCX

PE-2425G14-V0S03

RG178 For 17cm

R/A RP-SMA

PE-2425G14-V0I01

1.3mm For 17cm

I-PAX

PE-2425G14-V0S11

RG178 For 21cm

RP-SMA-Male

PE-2425G14-V0S12

RG178 For 21cm

SMA-Male

PE-2425G14-V0M11

RG178 For 21cm

R/A MMCX

PE-2425G14-V0C11

RG178 For 21cm

R/A MCX

PE-2425G14-V0S13

RG178 For 21cm

R/A RP-SMA

PE-2425G14-V0I10

1.3mm For 21cm

I-PAX
