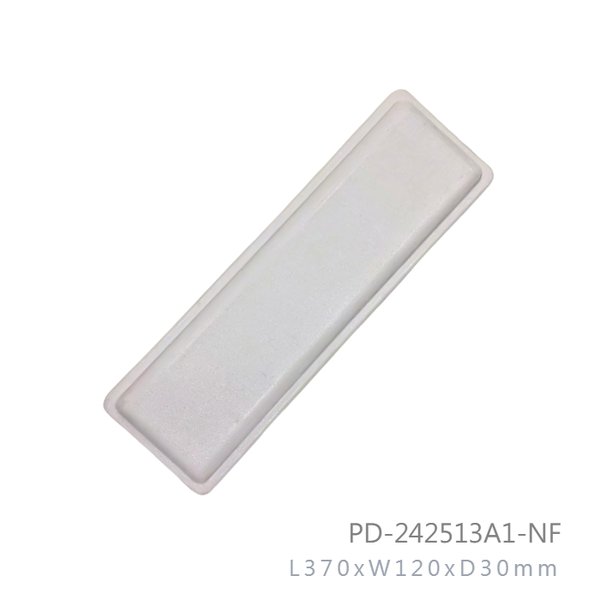

2.4GHz-2.5GHz 13dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna ( A1)2.4GHz-2.5GHz 13dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna ( A1)2.4GHz-2.5GHz 13dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna ( A1)

Model No: PD-242513A1-NF

  • Dimensions: L370xW120xD30mm
  • Weight: 350g
  • Connector: N-Female
  • -3db Beam width: H-Plane :+45. 67 Deg / -45: 67 Deg
  • E-Plane :-45. 18 Deg / +45:18 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • Directional Multipoint applications

  • MINO 2x2 TX/RX

  • Pubic Wireless Point to Point Bridge

  • WiFi,RFID

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13 dBi

Polarization

+-45 deg

Maximum Power

5 Watts

Vertical Beam-width

+45 18Deg

-45 18Deg

Horizontal Beam-width

+45 67Deg

-45 67Deg

FBR Greater than 28 dB
Cross Polarization Greater than -20 dB

Impedance

50 Ohm

Antenna Design

4(1x4) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2



Length x Width(MAX)

370 x 120 mm

Diameter (MAX)

30mm

Antenna Weight (G.W)

350 g

Accessories (G.W)

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
