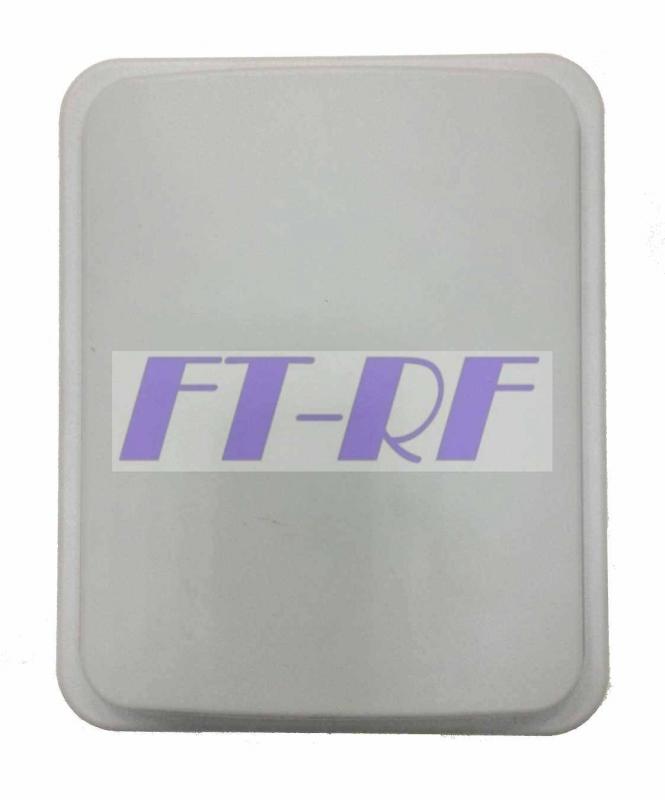

2.4 GHz and 5.8GHz 8dBi Dual Band Panel Outdoor Antenna2.4 GHz and 5.8GHz 8dBi Dual Band Panel Outdoor Antenna2.4 GHz and 5.8GHz 8dBi Dual Band Panel Outdoor Antenna

Model No: PI-245808-NF

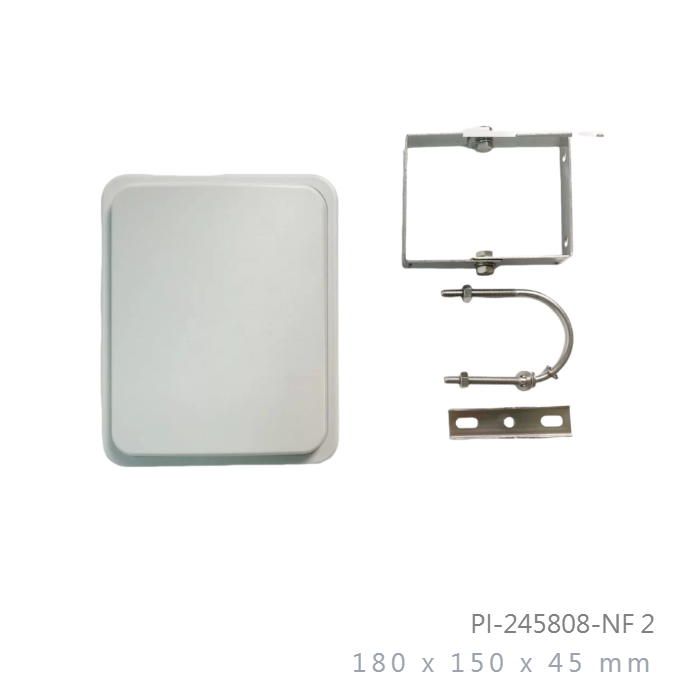

  • Dimension: L180xW150xD45mm
  • Weight: 226g
  • Connector: N-Female
INQUIRY

Applications:

  • 2.4GHz& 5GHz Dual Band

  • IEEE 802.11a,802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • Bluetooth, Point to Multipoint

  • Public Wireless Hotspot

  • WiFi,RFID,WiMAX

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Installed for Collinear Vertical Polarization

  • Outdoor antenna for public Hot spots

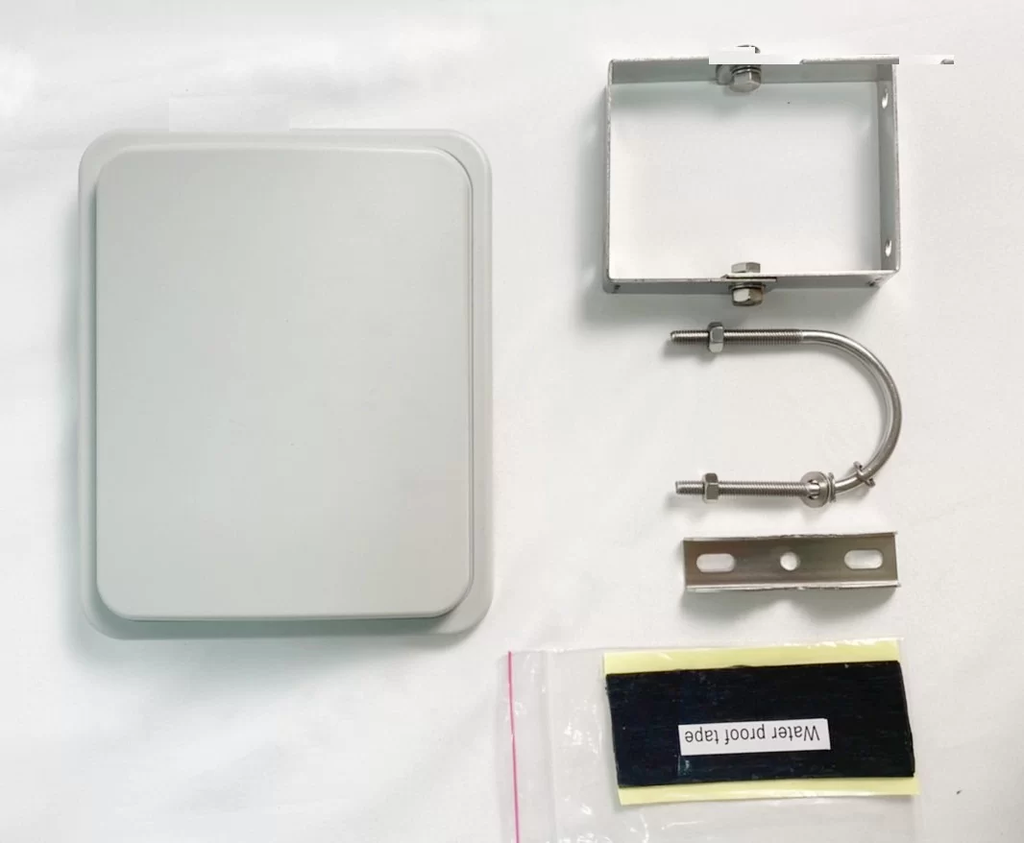

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400 to 2500MHz

5125 to 5875MHz

V.S.W.R (MAX)

2.0 :1

Antenna Type

Patch Type

Radiation Directional

Gain (MAX)

8dBi

Polarization

Vertical or Horizontal

Maximum Power

50Watts

Vertical Beamwidth

2.4GHz: 53Deg

5.8GHz: 46Deg

Horizontal Beamwidth

2.4GHz: 73Deg

5.8GHz: 79Deg

Impedance

50 Ohm

Antenna Design

Patch Array

Internal Material

Rogers PTFE(PCB)

Connector

N-Female

LxW

180 x 150 mm

Height

25mm

Antenna Weight

220 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Parts Material

Aluminum

Mount Style Pole Mount
Mounting Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
