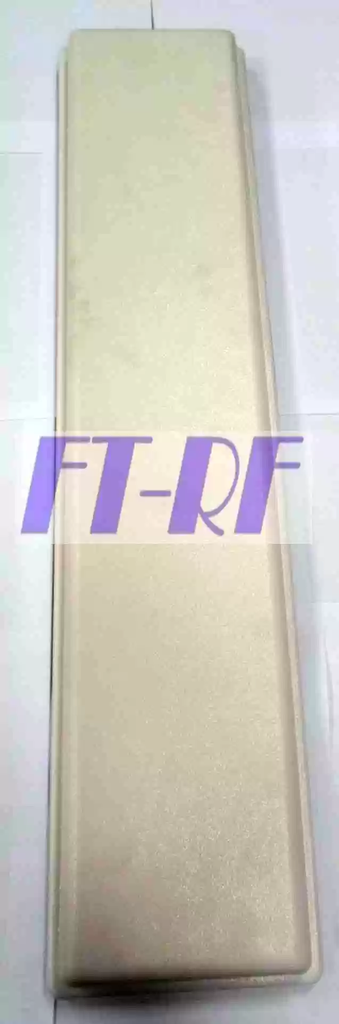

2.4GHz to 2.5GHz 15dBi Dual Polarized Outdoor Panel Directional Antenna2.4GHz to 2.5GHz 15dBi Dual Polarized Outdoor Panel Directional Antenna2.4GHz to 2.5GHz 15dBi Dual Polarized Outdoor Panel Directional Antenna

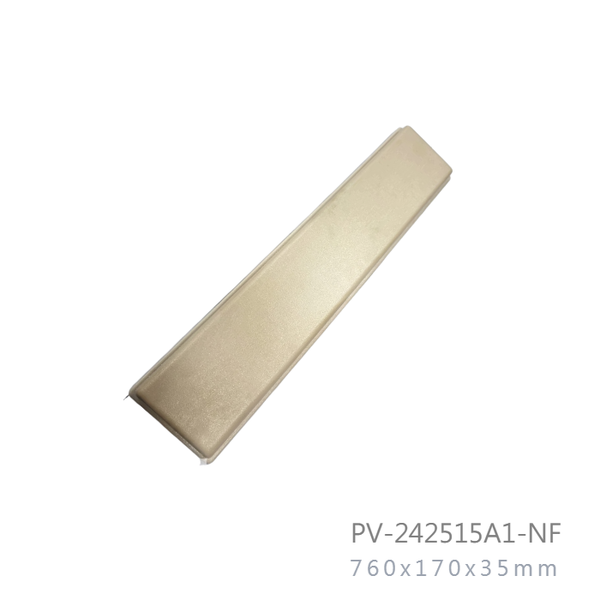

Model No: PV-242515A1-NF

  • Dimension : 760x170x35mm
  • Weight : 1045g
  • Connector : N-Female*2
  • Beam-width :Horz.Port1: 58 Deg / Port2: 8 Deg
  • Beam-width :Vert.Port1: 10 Deg / Port2: 56 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • Directional Multipoint applications 2 x 2 TX/RX
  • MIMO 2x2 Dual Port 9.5dBi
  • Pubic Wireless Point to Point
  • WiFi, RFID
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting brackets
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain(max)

2x15 dBi

Polarization

Vertical and Horizontal

Maximum Power

10 Watts

 -3db Vertical Beam-width

Port1 : 10 deg

Port2 : 56 deg

-3db Horizontal Beam-width

Port1 : 58 deg

Port2 : 8 deg

FBR(avg) Greater than 25dB
Isolation  Greater than 20dB

Impedance

50 Ohm

Antenna Design

1x8 Patch Array

Internal Material

FR4 (Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

760 x 170mm

Diameter (MAX)

35 mm

Antenna Weight (G.W)

1045 g

Accessories (G.W)

910 g

Application Outdoor

Radome Material

White ABS+PC

Mount Style 32-45mm

Parts Material

SUS 304

Mounting All Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater then 120MPH

Storage Temperature -40 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~95% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
