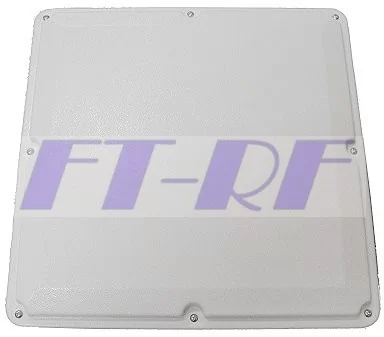

2.4GHz to 2.5GHz RHCP Circularly polarized 17dbi Panel Directional Outdoor Antenna2.4GHz to 2.5GHz RHCP Circularly polarized 17dbi Panel Directional Outdoor Antenna2.4GHz to 2.5GHz RHCP Circularly polarized 17dbi Panel Directional Outdoor Antenna

Model No: PR-242517-NF

  • Dimension : 375x375x40mm
  • Weight : 0.98 KG
  • Connector : N-Female
  • -3dB Beamwidth : RHCP 16deg
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • Directional Multipoint applications
  • Bluetooth
  • Public Wireless Point to Point Bridge
  • WiFi, RFID
  • Wireless Video Systems
  • Circularly Polarized

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Return Loss (LOW)

15db

Antenna Type

Patch Type

Gain

17 dbi

Polarization

Circularly RHCP

Maximum Power

5 Watts

RHCP Beam-width

16 Deg

Impedance

50 Ohm

Antenna Design

16(4x4) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female

Mechanical Specifications



Length x Width (MAX)

373 x 373 mm

Diameter (MAX)

20mm

Antenna Weight (G.W)

1020 g

Accessories (G.W)

250 g

Application

Indoor / Outdoor

Radome Material

ABS+UV

Parts Material

Aluminum

Mount Style

Pole Mount

Mounting

Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
