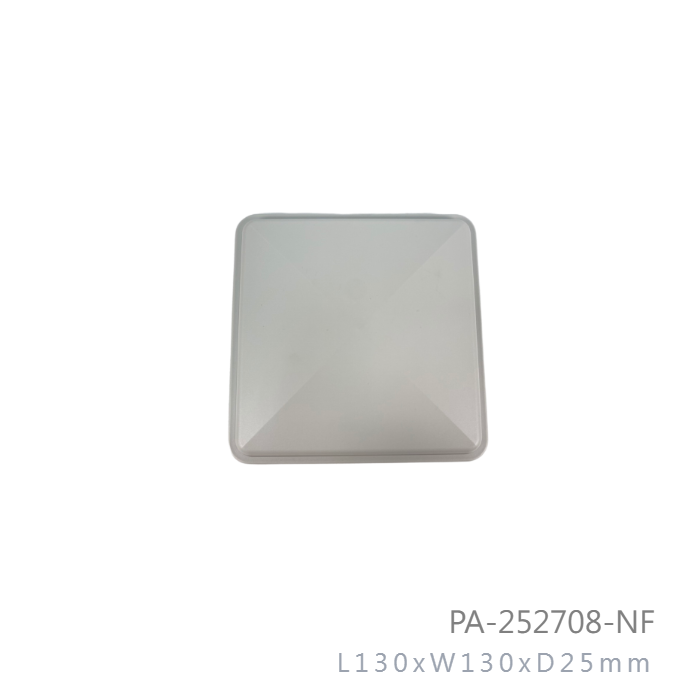

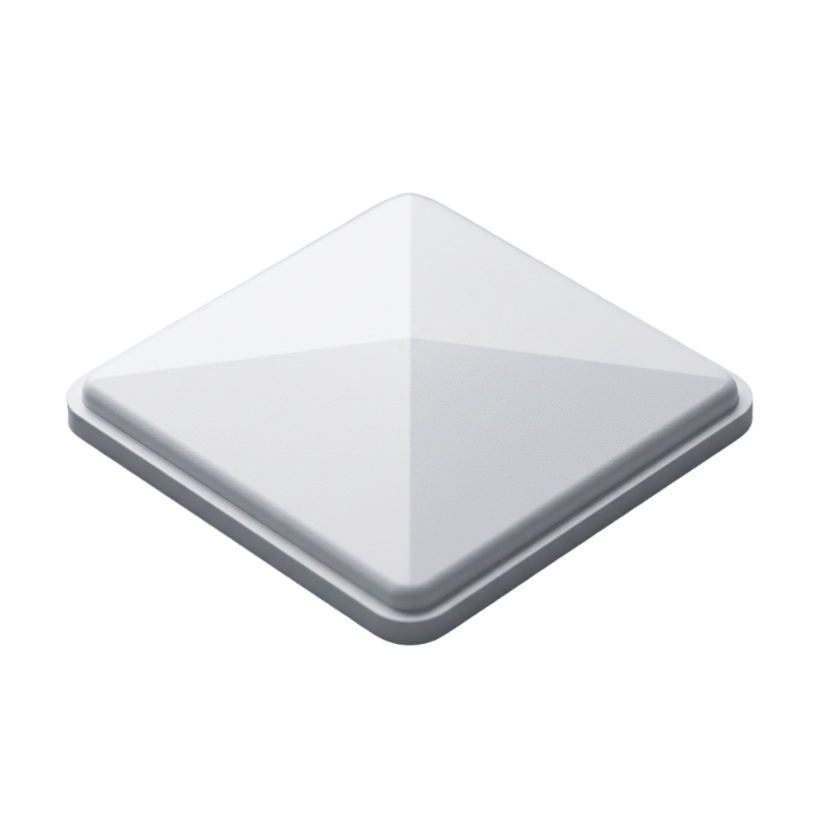

2.5GHz-2.7GHz 8dBi Panel Directional Outdoor Antenna

Model No: PA-252708-NF

  • Dimensions: L130xW130xD25mm
  • Weight: 0.4 KG
  • Connector: N-Female
  • Beam-width: Horz.75deg Vert.65deg
INQUIRY

Applications:

  • 2.5GHz-2.7GHz Band

  • IEEE 802.16 System

  • 8dBi Directional Multipoint applications

  • Point to Point Bridge

  • Pubic Wireless
  • WiMAX,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2500MHz - 2700MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

8 dBi

Polarization

Vertical or Horizontal

Maximum Power

5 Watts

Vertical Beam-width

65 Deg

Horizontal Beam-width

75 Deg

FBR Greater than 18 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

130 x 130mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

200 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount / Well Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater then 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
