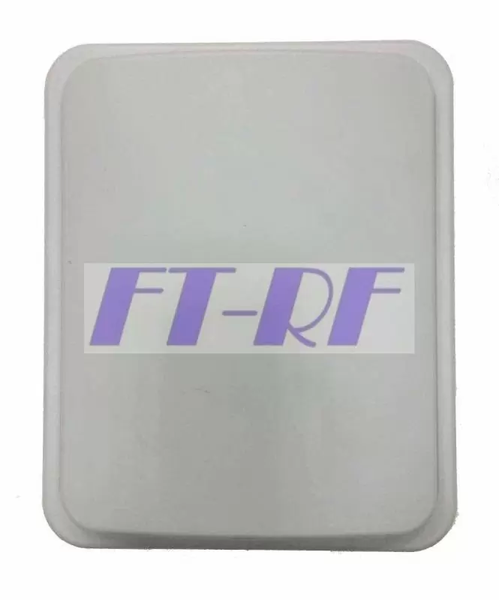

5.1 GHz to 5.9 GHz 12dBi 2x2 MIMO Dual Polarized Vertical & Horizontal Panel Directional Outdoor Antenna (A1)

Model No: PV-515912A1-NF

  • Dimensions: L180xW150xD25mm
  • Weight: 220g
  • Connector: N-Female*2
  • Beam-width: Horz.Port1: 33 Deg / Port2: 86 Deg
  • Beam-width: Vert.Port1: 61 Deg / Port2: 19 Deg
INQUIRY

Applications:

  • 5.125GHz-5.875GHz Band

  • IEEE 802.11a,802.20x,Wireless Lan

  • Directional Multipoint applications 2 x 2 TX/RX

  • MIMO 2x2 Dual Port 12dBi

  • Public Wireless Point to Point

  • WiMAX, WiBro, WiFi

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

12 dBi

Polarization

 Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

Port1: 61 Deg / Port2: 19 Deg

Horizontal Beam-width

Port1: 33 Deg / Port2:86 Deg

FBR Greater than 12 dB
Cross Polarization Greater than -15 dB

Impedance

50 Ohm

Antenna Design

4(1x4) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2

Length x Width

180 x 150mm

Diameter

25mm

Antenna Weight

220 g

Accessories

250 g

Application Indoor / Outdoor

Radome Material

Gray ABS+UV

Mount Style Pole Mount / Wall Mount

Parts Material

Stainless Steel

Mounting Stainless Steel and Aluminum
Mount Adjustment +-35 deg

Wind Survival

Greater than 120MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
