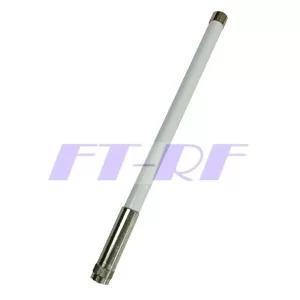

5.125GHz-5.875GHz 10dbi Mini Omni directional Outdoor Antenna (N-Male)5.125GHz-5.875GHz 10dbi Mini Omni directional Outdoor Antenna (N-Male)5.125GHz-5.875GHz 10dbi Mini Omni directional Outdoor Antenna (N-Male)

Model No: OS-515910-NM

Datasheet:Download

  • Dimension: 410x17mm
  • Weight: 230g
  • Connector: N-Male
  • Beam-width: Horz.360Deg Vert.11Deg
INQUIRY

Applications:

  • 5.15GHz-5.875GHz Band

  • IEEE 802.11 System

  • 10dBi Mini Omni Directional Multipoint applications

  • Point to Point Bridge / MMDS / Hotspot

  • Public Wireless

  • WiMAX,WLAN,WiFi,802.11a

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support is an aluminum

  • Outdoor antenna for public

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation

Mini Omni Directional

Gain

10 dBi

Polarization

Vertical

Maximum Power

100 Watts

Vertical Beam-width

11 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

410 mm

Diameter (MAX)

17 mm

Antenna Weight (G.W)

230 g

Accessories (G.W)

0.01 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Mount Style

No

Parts Material

Aluminum or Copper

Mounting

Optional

Wind Survival

Greater than 180MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

WEEE, CE, FCC, RoHS
