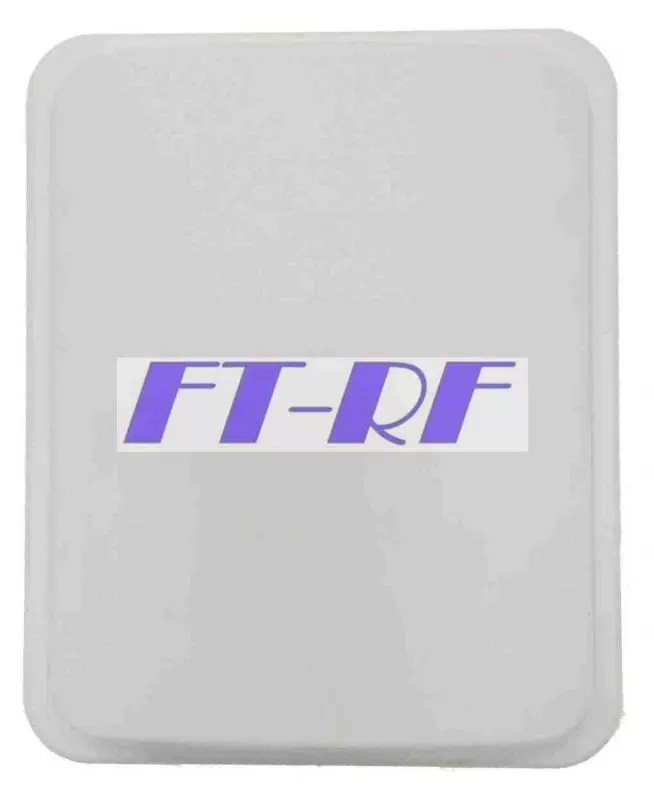

5.125 GHz to 5.875 GHz 16dbi Panel Directional Outdoor Antenna5.125 GHz to 5.875 GHz 16dbi Panel Directional Outdoor Antenna5.125 GHz to 5.875 GHz 16dbi Panel Directional Outdoor Antenna

Model No: PA-515916-NF

  • Dimensions: L180xW150xD25mm
  • Weight: 750g
  • Connector: N-Female
  • Beam-width: Horz.26 Deg Vert.25 Deg
INQUIRY

Applications:

  • 5.15GHz-5.875GHz Band

  • IEEE 802.11 System

  • 16dBi Directional Multipoint applications

  • Point to Point Bridge / MMDS

  • Public Wireless

  • WiMAX,WLAN,WiFi,802.11a

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

16 dBi

Polarization

Vertical or Horizontal

Maximum Power

10 Watts

Vertical Beam-width

26 Deg

Horizontal Beam-width

25 Deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

16(4x4) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width

180 x 150mm

Height

25mm

Antenna Weight

450 g

Accessories

280 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
