Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
5.125GHz-5.875GHz Wimax and Wifi Band
-
IEEE 802.11a / 80216d / 80216e Wireless Lan
-
18dBi Directional Dual port Multipoint applications
-
Point to Point Bridge
-
SOC CPE User
-
Jumper Cable can be switched to Equipment Connection
-
Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.
-
Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.
-
WiMAX / WiFi, WLAN /MIMO /
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight (UV ABS)
-
Good appearance design
-
DC Short lightning protection
-
Outdoor antenna for public Hot spots
-
Includes tilt and swivel mast mount brackets
-
IP65 Waterproof rating
-
RoHS Compliant
|
Frequency Range |
5125MHz - 5875MHz |
|---|---|
|
V.S.W.R (MAX) |
1.5 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain |
18 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
10 Watts |
|
Vertical Beam-width |
18 Deg |
|
Horizontal Beam-width |
17 Deg |
| FBR | Greater than 25 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
16(4x4) Patch Array |
|
Internal Material |
Taiwan FR4 |
| RF Cable | RG178 / RG174/ other |
| Connector | I-PAX or MMCX or Other |
|
Waterproof RJ45 |
20cm RJ45 Male |
|
Length x Width |
230 x 230 mm |
|---|---|
|
Height |
75 mm |

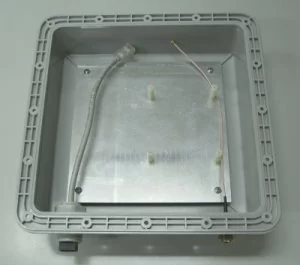

| Inside Length x Width(Least) | 150 x 70mm (User Space) |
| Inside Diameter(Least) | 25mm (User Space) |
|
Antenna Weight (G.W) |
400 g |
|
Accessories (G.W) |
200 g |
| Application | Indoor / Outdoor |
|
Radome Material |
Light Gray ABS |
| Waterproof Box | Light Gray ABS |
| Mount Style | Pole Mount and Wall Mount |
| Mount Pole | 32mm to 50mm |
|
Wind Survival |
Greater than 180MPH |
| Storage Temperature | -20 to +60 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS |
Model Series No.
| Model No. | Cable Length | Connector |
|
PE-5158G18-V0S01 |
RG178 For 17cm |
RP-SMA-Male |
|
PE-5158G18-V0S02 |
RG178 For 17cm |
SMA-Male |
|
PE-5158G18-V0M01 |
RG178 For 17cm |
R/A MMCX |
|
PE-5158G18-V0C01 |
RG178 For 17cm |
R/A MCX |
|
PE-5158G18-V0S03 |
RG178 For 17cm |
R/A RP-SMA |
|
PE-5158G18-V0I01 |
1.3mm For 17cm |
I-PAX |
|
PE-5158G18-V0S11 |
RG178 For 21cm |
RP-SMA-Male |
|
PE-5158G18-V0S12 |
RG178 For 21cm |
SMA-Male |
|
PE-5158G18-V0M11 |
RG178 For 21cm |
R/A MMCX |
|
PE-5158G18-V0C11 |
RG178 For 21cm |
R/A MCX |
|
PE-5158G18-V0S13 |
RG178 For 21cm |
R/A RP-SMA |
|
PE-5158G18-V0I10 |
1.3mm For 21cm |
I-PAX |
