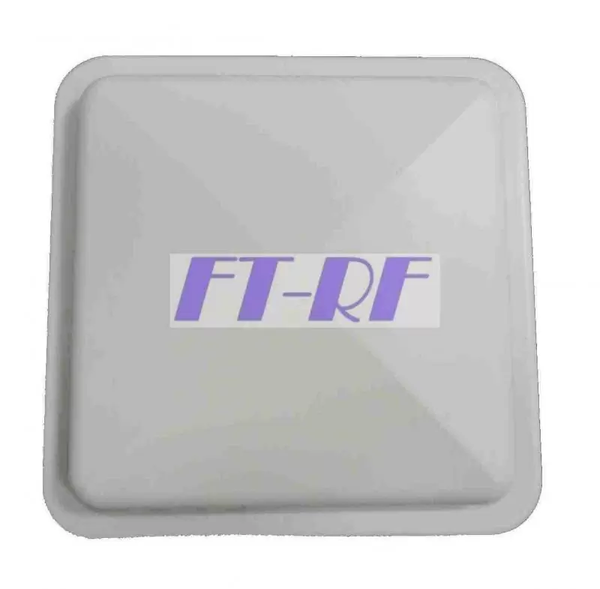

5GHz 8dBi Directional Antenna
Model: PA-515908-NF | One-Patch Design | N-Female
The PA-515908-NF is a high-performance 5GHz directional panel antenna designed for versatile wireless network deployments. Providing stable 8 dBi gain with a broad beam-width, it ensures reliable connectivity for Point-to-Point bridges and public hotspots. Built with UV-resistant materials and integrated surge protection, it offers unmatched Signal Integrity for both indoor and outdoor professional wireless infrastructures.
Core Electrical Specifications
| Frequency Range | 5125 MHz - 5875 MHz |
| Average Gain | 8 dBi |
| V.S.W.R (MAX) | 1.5 : 1 |
| Polarization | Vertical or Horizontal |
| Beam-width | Horz. 70° / Vert. 68° |
| Front-to-Back Ratio | > 15 dB |
| Impedance | 50 Ohm |
Mechanical & Environmental Parameters
| Dimensions (L x W x H) | 130 x 130 x 25 mm |
| Radome Material | White ABS |
| Connector Type | N-Female |
| Mounting Style | Pole / Wall Mount |
| Wind Survival | > 150 MPH |
| Operating Temperature | -40°C to +60°C |
| Compliance | CE, FCC, RoHS |
Key Tactical & Engineering Features
One-Patch Precision
Constructed with an internal single-patch radiator on premium Taiwan FR4 material to achieve stable directional gain and consistent impedance matching.
DC Short Protection
Equipped with integrated lightning protection to safeguard critical radio equipment and wireless video systems from atmospheric static surges.
Flexible Orientation
Includes a stainless steel tilt and swivel mounting kit that allows for a 30-degree adjustment, facilitating precise alignment for hotspot links.
Compact All-Weather Build
The UV-protected ABS radome and aluminum back-plate provide a lightweight yet durable solution for public wireless deployments under high wind loads.
