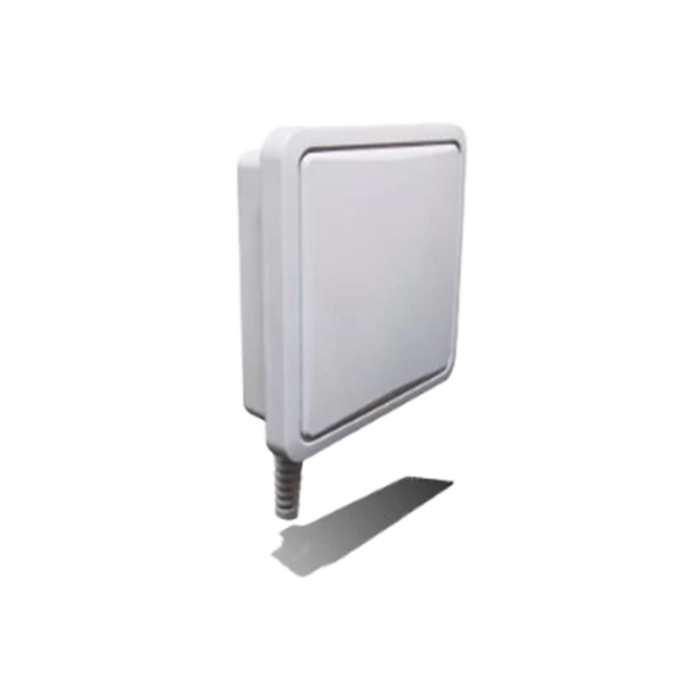

5.4GHz-5.8GHz 13dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna5.4GHz-5.8GHz 13dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna5.4GHz-5.8GHz 13dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

Model No: PE-515817-MM

  • Dimensions: L230xW230xD75mm
  • Weight: 0.9 KG
  • Connector: MMCX withRG178*15cm*2
  • Beam-width: Horz.17 deg Vert.17 deg
INQUIRY

Applications:

  • 5.4GHz-5.8GHz ISM Band

  • IEEE 802.11 System

  • Directional Multipoint applications

  • Point to Point Bridge/MMDS

  • Public Wireless Hotspot

  • WiMAX ,WLAN , WIFI, 802.11a

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • All-weather operation

  • DC Short lightning protection

  • Installed for vertical

  • Includes tilt and swivel mast mount

  • In accordance with customer needs to change the colors or features.

Frequency Range

5400MHz - 5800MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation

 Directional

Gain (MAX)

17 dBi

Polarization

Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

17 Deg

Horizontal Beam-width

17 Deg

Impedance

50 Ohm

Antenna Design

16(4x4)Patch Array

Internal Material

FR4(Taiwan)

Connector

 MMCX withRG178*15cm*2

Length x Width (MAX)

230 x 230 mm

Diameter (MAX)

75mm

 Weight (G.W)

900 g

Application

Indoor / Outdoor

Radome Material

White ABS

Parts Material

Aluminum

Mount Style

Pole Mount

Mounting

Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
