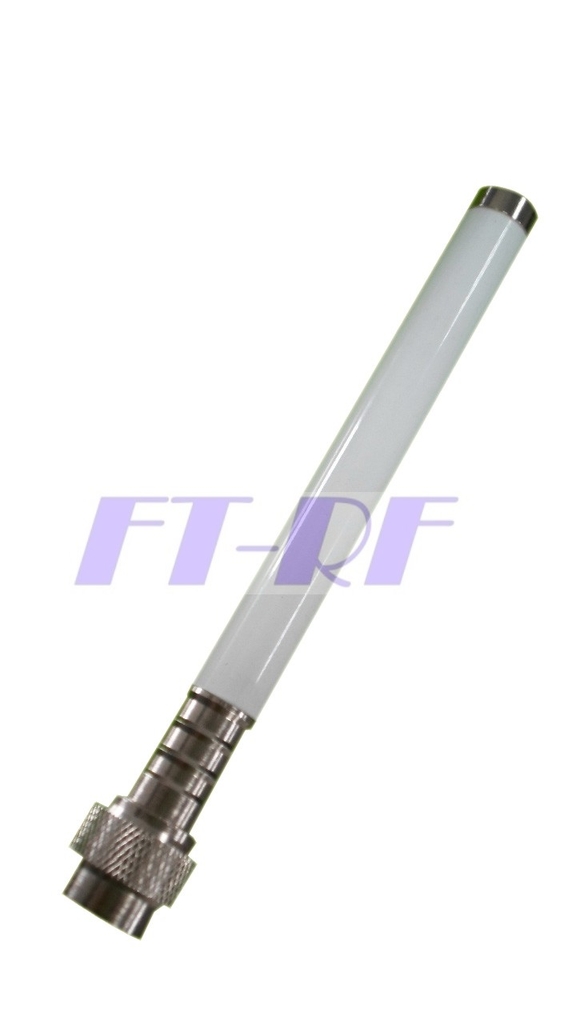

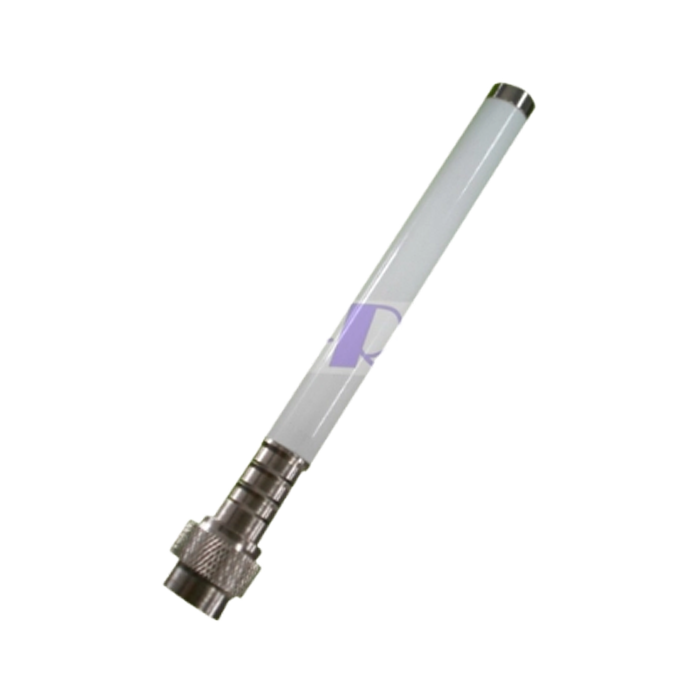

824 to 960MHz and 1710 to 2170MHz 3dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)824 to 960MHz and 1710 to 2170MHz 3dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)824 to 960MHz and 1710 to 2170MHz 3dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)

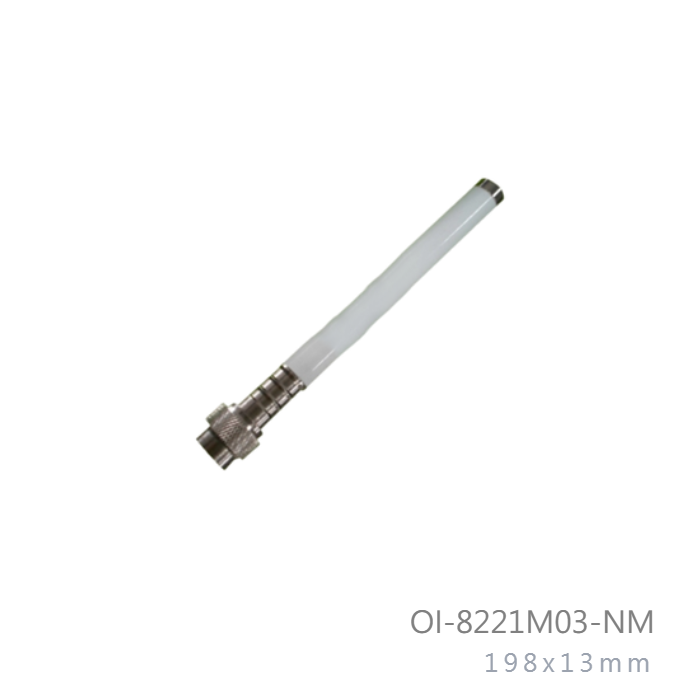

Model No: OI-8221M03-NM

Datasheet:Download

  • Model : OI-8221M03-NM
  • Dimension : 198x13mm
  • Weight : 85g
  • Connector : N-Male
  • Beam-width : Horz.360Deg
  • 824MHz to 960MHz: Vert.41Deg, 1710MHz to 2170Mhz: Vert.60Deg
INQUIRY

Applications:

  • 824MHz to 960MHz Band and 1710MHz to 2170MHz
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

824MHz to 960MHz

1710MHz to 2170MHz

V.S.W.R (Avg)

 2.5 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (Avg)

3 dBi

Polarization

Vertical

Maximum Power

5 Watts

Vertical Beam-width

824-960MHz : 41 Deg

1710-2170Mhz : 60Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

 Dipole

Internal Material

PCB (FR4)

Connector

N-Male


Length (MAX)

198mm

Diameter (MAX)

13mm

Antenna Weight (G.W)

85 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Base Material

Copper with nickel-plated

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing
Storage Humidity  5%~80% non-condensing

Safety, Emission and other

RoHS
