Description
-
Electrical Specifications
-
Mechanical Specifications
Applications:

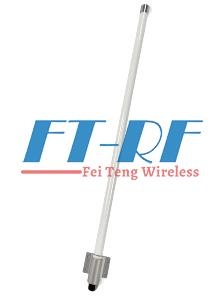

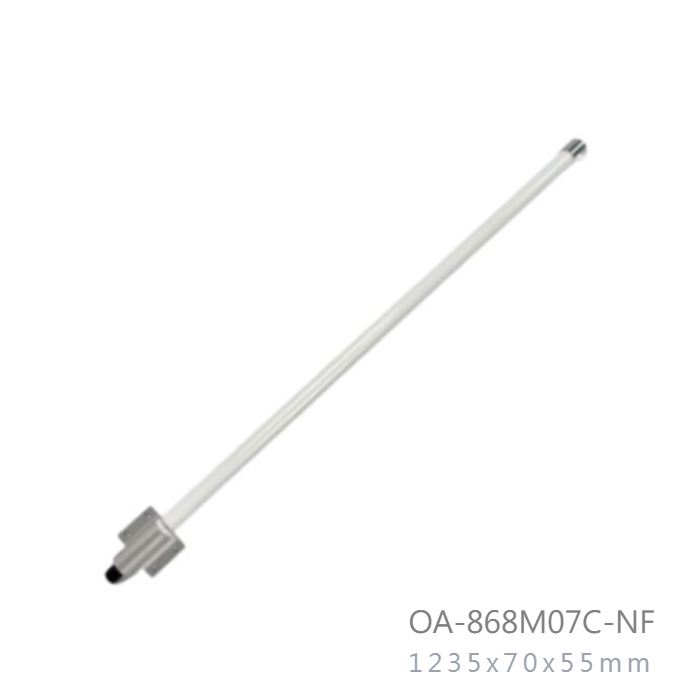

- 860MHz to 870MHz Band - EU868 Antenna N-Female
- EU868 LoRa
- Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- Aluminum mounting brackets
- Outdoor antenna for public
- Including tilt and swivel mast mounting kit
- RoHS Compliant
|
Frequency |
860MHz to 870MHz |
|
V.S.W.R |
≤ 2.0:1 |
|
Antenna Type |
Omni |
|
Radiation |
Directional |
|
Gain (MAX) |
7 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beamwidth |
5 Deg |
|
Horizontal Beamwidth |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole spring array |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|
Dimension |
1235x70x55mm |
|
Antenna Weight (N.W) |
700 |
|
Application |
Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
|
Parts Material |
Aluminum |
|
Mount Style |
Pole Mount / Wall Mount |
|
Mounting |
U type Stainless Steel |
|
Wind Survival |
Greater than 150MPH |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-20 to +60 |
|
Operating Humidity |
10%~80% non-condensing |
