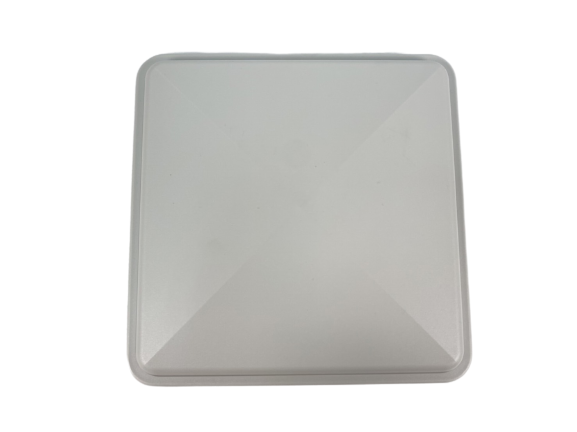

860MHz to 870MHz 7.5dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 7.5dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 7.5dBi Vertical or Horizontal Panel Directional Antenna

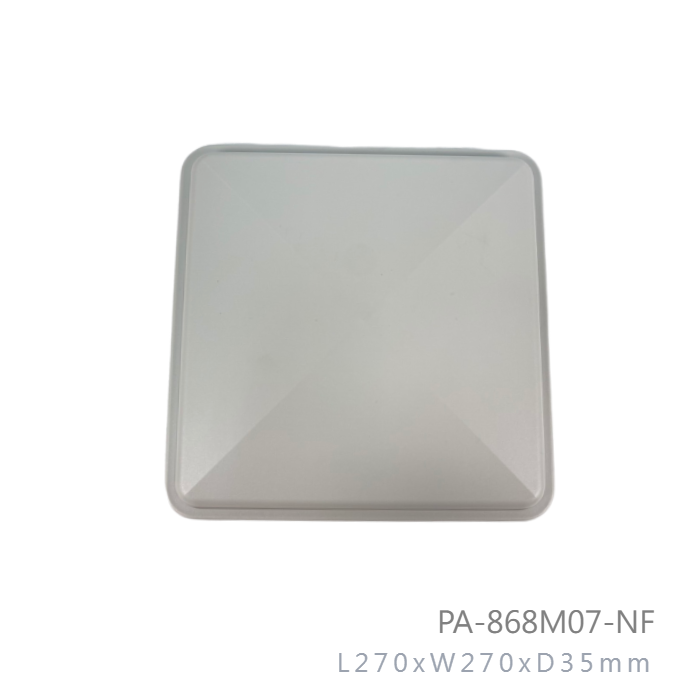

Model No: PA-868M07-NF

  • Dimension : L270xW270xD35mm
  • Weight : 1.1 KG
  • Connector : N-Female
  • Beam-width : Horz.72 deg Vert.68 deg
INQUIRY

Applications

  • 860MHz to 870MHz 7.5dBi Vertical or Horizontal Panel Directional Antenna
  • Directional and multipoint applications

Features

  • Superior performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection
  • Vertical installation
  • Including tilt and swivel mast mounting kit

Frequency Range

860MHz - 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Patch Type

RadiationDirectional

Gain (Avg)

7.5 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beam-width

68 Deg

Horizontal Beam-width

72 Deg

F / B-15 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Implant resistance10K Ohm

Connector

N-Female

Length x Width(MAX)

270 x 270mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

800g

Accessories (G.W)

300 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment+- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety,Emission and other

CE, FCC, RoHS
