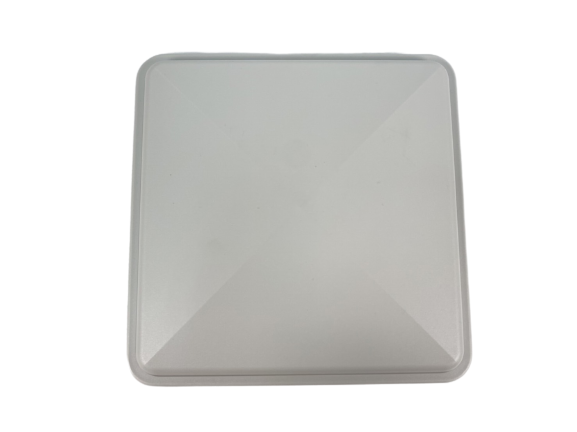

860MHz to 870MHz 8dBi RHCP and LHCP Dual Circular Polarization Panel Directional Antenna860MHz to 870MHz 8dBi RHCP and LHCP Dual Circular Polarization Panel Directional Antenna860MHz to 870MHz 8dBi RHCP and LHCP Dual Circular Polarization Panel Directional Antenna

Model No: PM-86808-DNF

  • Dimension : L600xW300xD35mm
  • Weight : 2.1 KG
  • Connector : N-Female x 2
  • Beam-width : Eleva: 70deg Azimu.68deg
INQUIRY

Applications

  • 860MHz to 870MHz Band
  • RHCP and LHCP
  • Directional and multipoint applications

Features

  • Superior performance
  • Lightweight
  • All weather operation
  • DC Short lightning protection
  • Vertical installation
  • Including tilt and swivel mast mounting kit

Frequency Range

860MHz - 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Patch Type

RadiationDirectional

Gain (Avg)

8 dBi

Polarization

RHCP And LHCP

Maximum Power

15 Watts

Azimuth Beam-width

68 Deg

Elevation Beam-width

70 Deg

Sidelobes Level-12 dB

Impedance

50 Ohm

Antenna Design

Two Patch

Internal Material

FR4(Taiwan)

Implant resistance10K Ohm

Connector

N-Female x 2

Length x Width(MAX)

300 x 600 mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

1800 g

Accessories (G.W)

350 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment+- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
