Description
-
Electrical Specifications
-
Mechanical Specifications
Applications

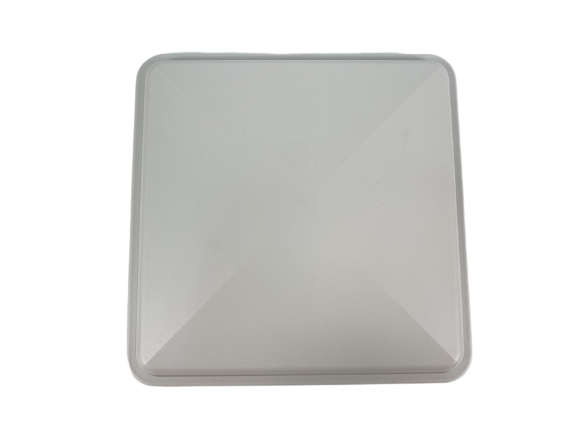

- 860MHz to 870MHz 8dBi RHCP Circular polarization Panel Directional Antenna N-Female
- Directional and multipoint applications
Features
- Superior performance
- Lightweight
- All-weather operation
- DC Short lightning protection
- Vertical installation
- Including tilt and swivel mast mounting kit
|
Frequency Range |
860MHz - 870MHz |
|---|---|
|
V.S.W.R (MAX) |
868MHz: 1.5 :1 860MHz and 870MHz: <2.0 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain (Avg) |
8 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
15 Watts |
|
Azimuth Beam-width |
68 Deg |
|
Elevation Beam-width |
70 Deg |
| Sidelobes Level | -12 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
One Patch |
|
Internal Material |
FR4(Taiwan) |
| Implant resistance | 10K Ohm |
|
Connector |
N-Female |
|

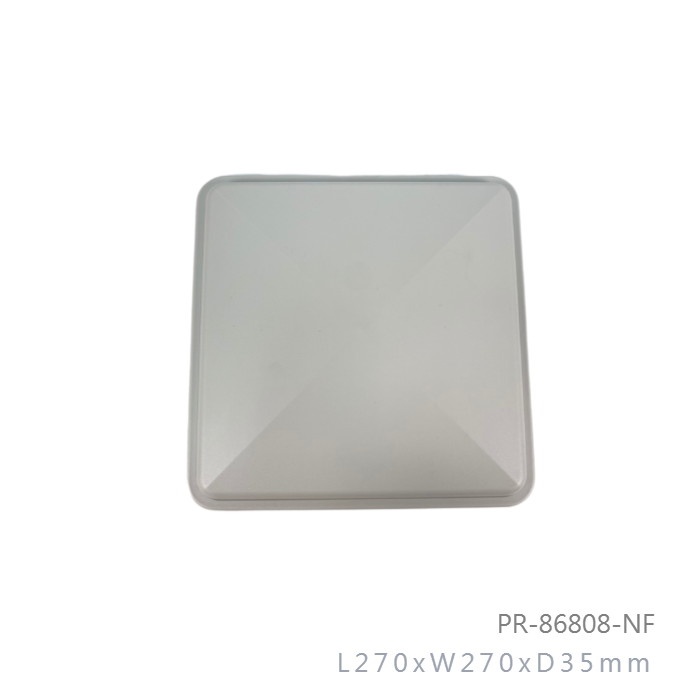

Length x Width(MAX) |
270 x 270mm |
|---|---|
|
Diameter (MAX) |
35mm |
|
Antenna Weight (G.W) |
800 g |
|
Accessories (G.W) |
300 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS |
| Mount Style | Pole Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel |
| Mount Adjustment | +- 28deg |
|
Wind Survival |
Greater than 150MPH |
| Storage Temperature | -20 to +80 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~80% non-condensing |
| Storage Humidity |
5%~80% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS |
