Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:

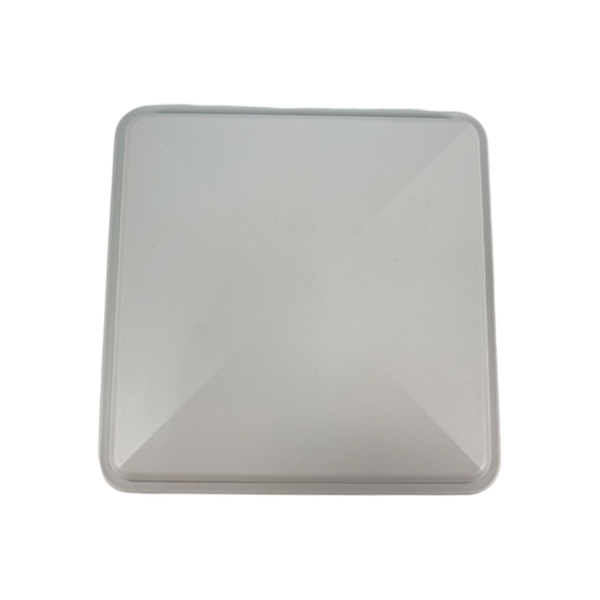

- 902MHz to 928MHz Band N-Female
- Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is made of aluminum
- Outdoor antenna for public
- Including tilt and swivel mast mounting kit
- RoHS Compliant
|
Frequency Range |
902MHz - 928MHz |
|---|---|
|
V.S.W.R (MAX) |
915MHz: 1.5 :1 902MHz and 928MHz: <2.0 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain (Avg) |
14 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
15 Watts |
|
Vertical Beam-width |
41 Deg |
|
Horizontal Beam-width |
34 Deg |
| F/B |
-32dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female |
|

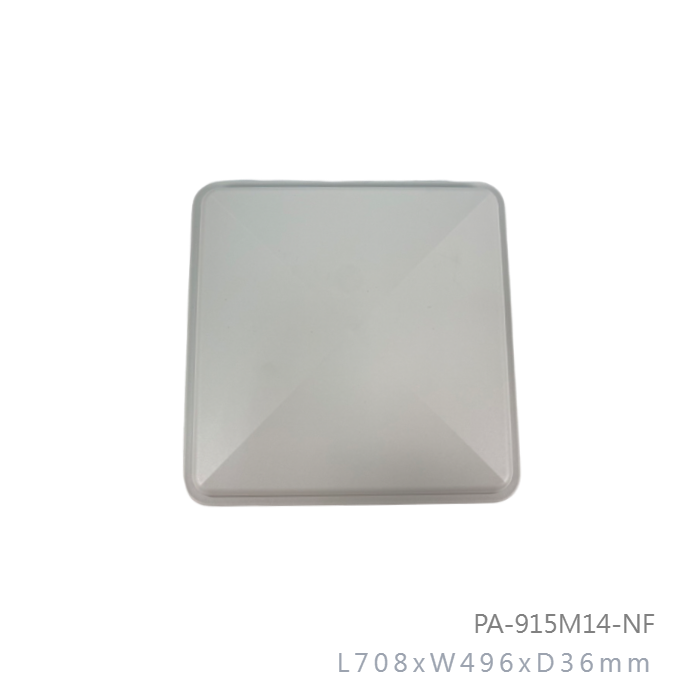

Length x Width(MAX) |
708 x 496mm |
|---|---|
|
Diameter (MAX) |
36mm |
|
Antenna Weight (G.W) |
7689 g |
|
Accessories (G.W) |
3033 g |
| Application | Outdoor |
|
Radome Material |
/ |
| Mount Style | Pole Mount/ Wall Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel |
| Mount Adjustment |
+/-28 deg |
|
Wind Survival |
Greater than 150MPH |
|
Storage Temperature |
-20 to +80 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~80% non-condensing |
| Storage Humidity | 5%~80% non-condensing |
|
Safety, Emission and other |
RoHS |
