902MHz to 928MHz 8dBi Vertical and Horizontal Dual Polarization Panel Directional Antenna902MHz to 928MHz 8dBi Vertical and Horizontal Dual Polarization Panel Directional Antenna902MHz to 928MHz 8dBi Vertical and Horizontal Dual Polarization Panel Directional Antenna

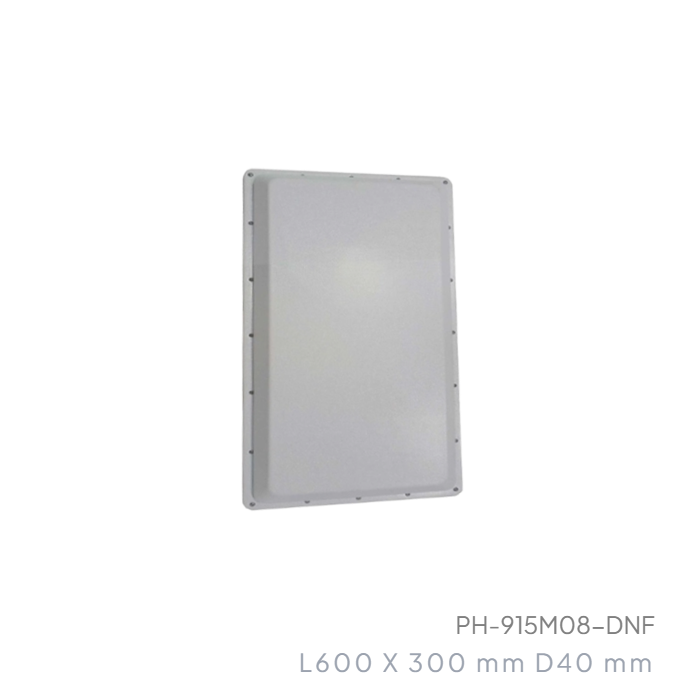

Model No: PH-915M08-DNF

  • Dimension : L300xW600xD35mm
  • Weight : 2.1 KG
  • Connector : N-Female x 2
  • Beam-with : Eleva: 70deg Azimu.68deg
INQUIRY

Applications:

  • 902MHz to 928MHz 8dBi Vertical and Horizontal Dual Polarization Panel Directional Antenna
  • Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

902MHz to 928MHz

V.S.W.R (MAX)

915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Patch Type

RadiationDirectional

Gain (Avg)

8 dBi

Polarization

Vertical and Horizontal

Maximum Power

15 Watts

Azimuth Beam-with

68 Deg

Elevation Beam-with

70 Deg

Sidelobes Level-12 dB

Impedance

50 Ohm

Antenna Design

Two Patch

Internal Material

FR4(Taiwan)

Implant resistance10K Ohm

Connector

N-Female x 2

Length x Width(MAX)

300 x 600 mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

1800 g

Accessories (G.W)

350 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount

Parts Material

Aluminum

MountingStanless Steel
Mount Adjustment+- 28deg

Wind Survival

Greater then 150MPH

Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
