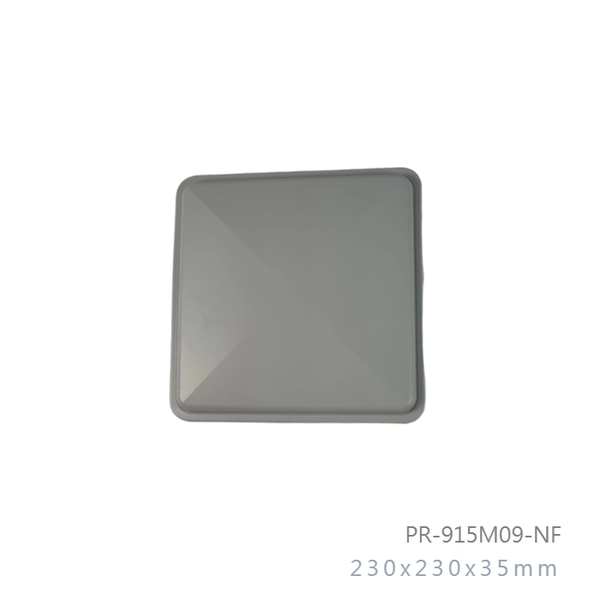

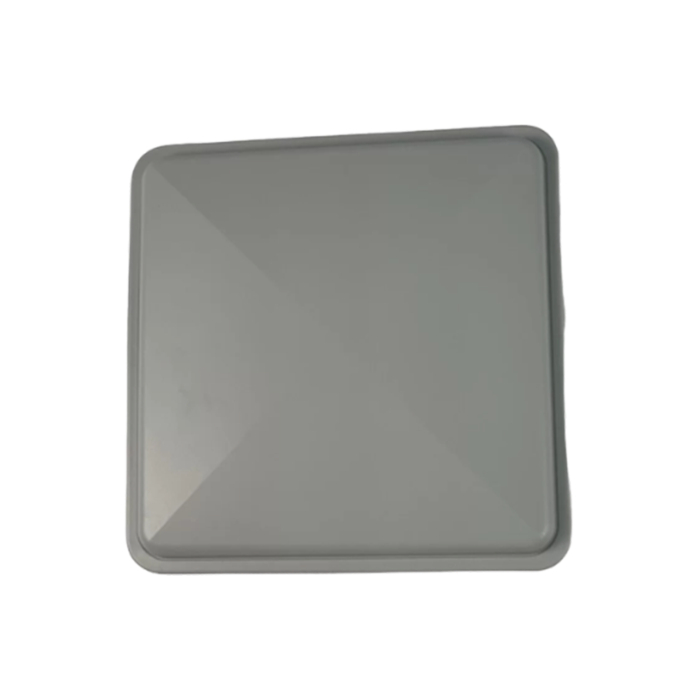

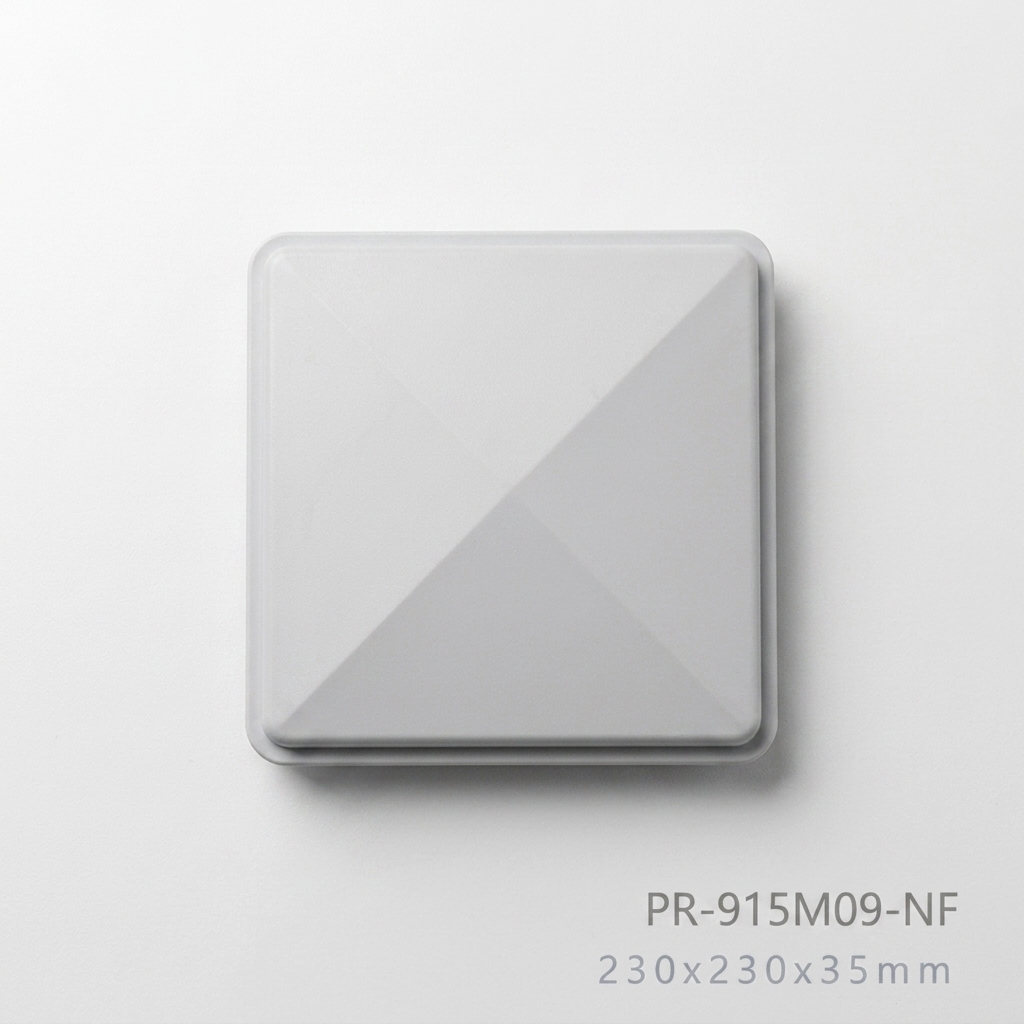

902MHz to 928MHz 9dBi RHCP Circular Polarization Panel Directional Antenna902MHz to 928MHz 9dBi RHCP Circular Polarization Panel Directional Antenna902MHz to 928MHz 9dBi RHCP Circular Polarization Panel Directional Antenna

Model No: PR-915M09-NF

Datasheet:Download

  • Dimension : 230x230x35mm
  • Weight : 572g
  • Connector : N-Female
  • -3db Beamwidth: 75 Deg
INQUIRY

Applications:

  • 902MHz to 928MHz 9dBi RHCP Circular Polarization Panel Directional Antenna
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust.
  • Behind and support is made of aluminum
  • Outdoor antenna for public hotspots
  • Including tilt and swivel mast mounting kit

Frequency Range

902MHz – 928MHz

V.S.W. R

2.0 :1

Antenna Type

Patch Type

Radiation

Directional

Gain

9 dBi

Polarization

Circular polarization

Maximum Power

15W

3dB Beamwidth

79 Deg

Impedance

50 Ohm

FBR

16 db

Antenna Design

One Patch

Connector

N-Female

Length x Width (MAX)

230x 230mm

Height (MAX)

 35mm

Antenna Weight (G.W)

572 g

Accessories (G.W)

100g

Application

Indoor/Outdoor

Radome Material

Gray ABS+PC+UV

Mount Style

Pole Mount

Parts Material

Aluminum

Mounting

Aluminum

Mount Adjustment

+- 28deg

Wind Survival

Greater then 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-10 to +60

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission and other

RoHS, WEEE, CE, FCC
