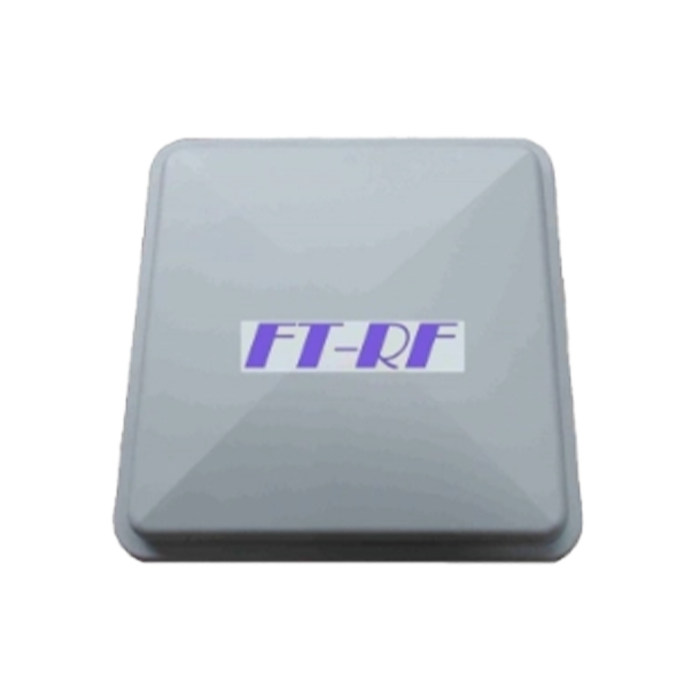

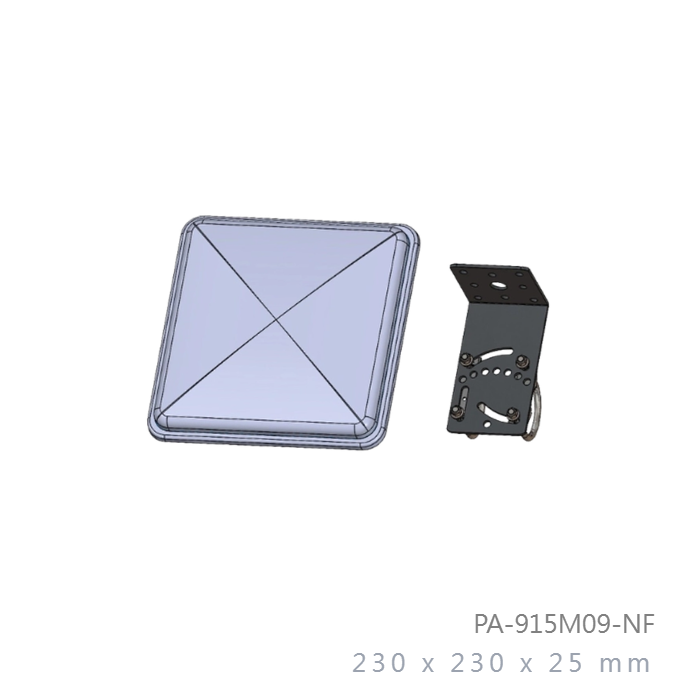

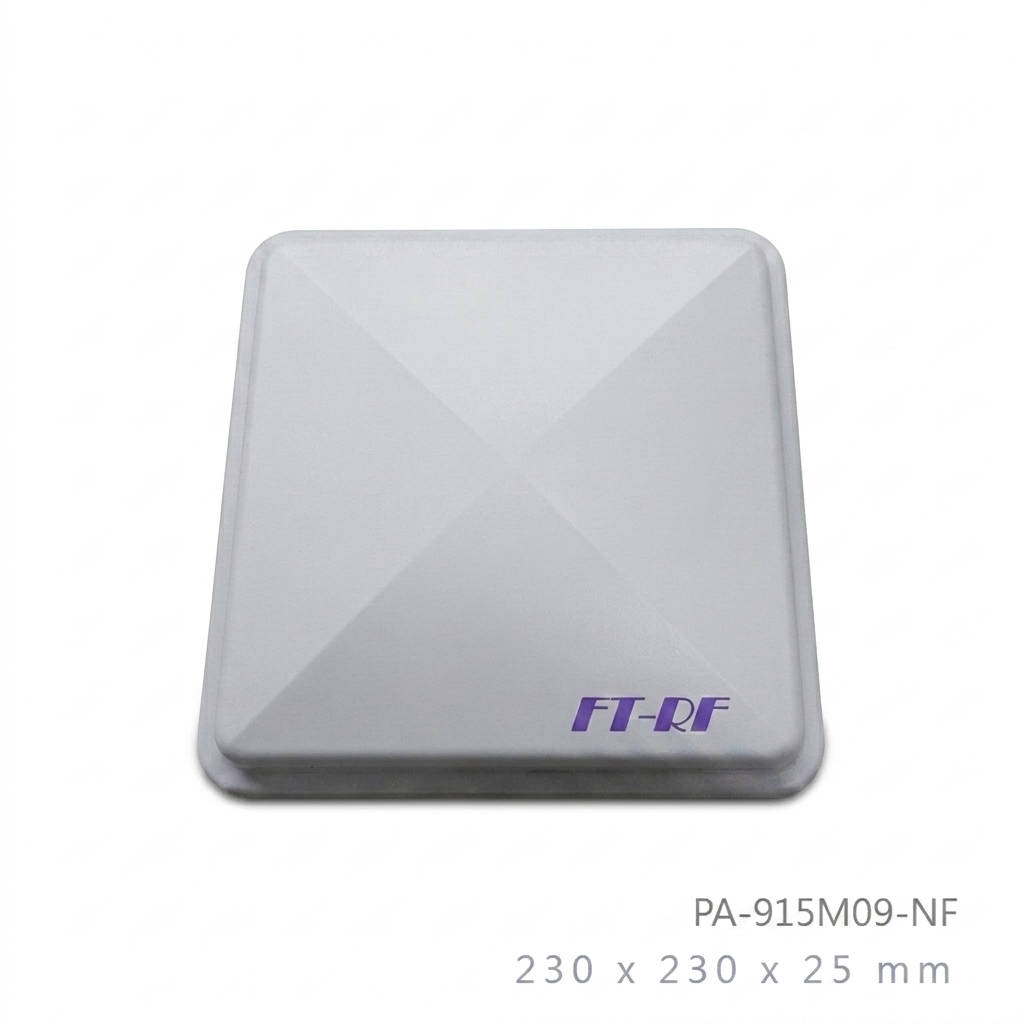

902MHz to 928MHz 9dBi Vertical or Horizontal Panel Directional Antenna N-Female

Model No: PA-915M09-NF

Datasheet:Download

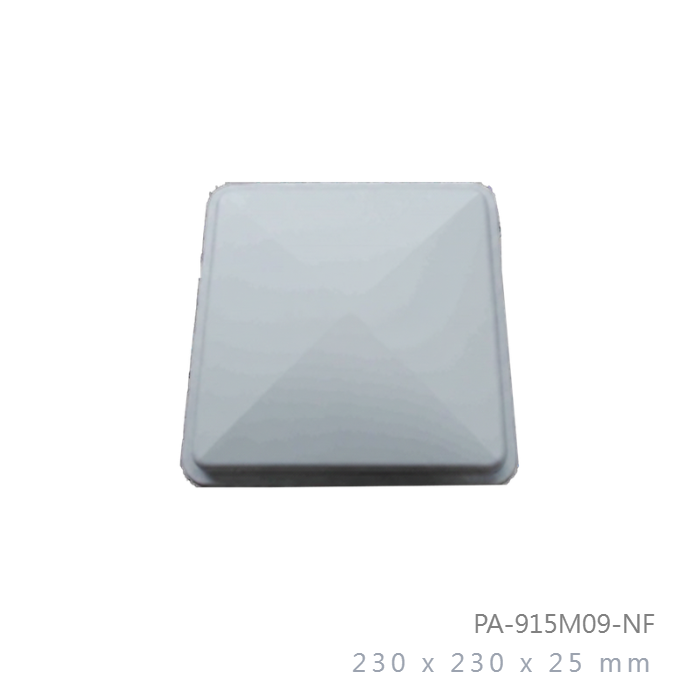

  • Dimension : L230xW230xH25mm
  • Weight : 713g
  • Connector : N-Female
  • Beam-width : Horz.52 deg Vert.49 deg
INQUIRY

Applications:

  • 902MHz to 928MHz 9dBi Vertical or Horizontal Panel Directional Antenna N-Female
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless hotspot
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

902MHz - 928MHz

V.S.W.R (MAX)

915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Patch Type

Radiation Directional

Gain (Avg)

9 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beamwidth

49 Deg

Horizontal Beamwidth

52 Deg

F / B -19 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Implant resistance 10K Ohm

Connector

N-Female

Length x Width(MAX)

230 x 230 mm

Height (MAX)

25 mm

Antenna Weight (G.W)

450 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment ¡Ó28deg

Wind Survival

Greater than 150MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

RoHS
