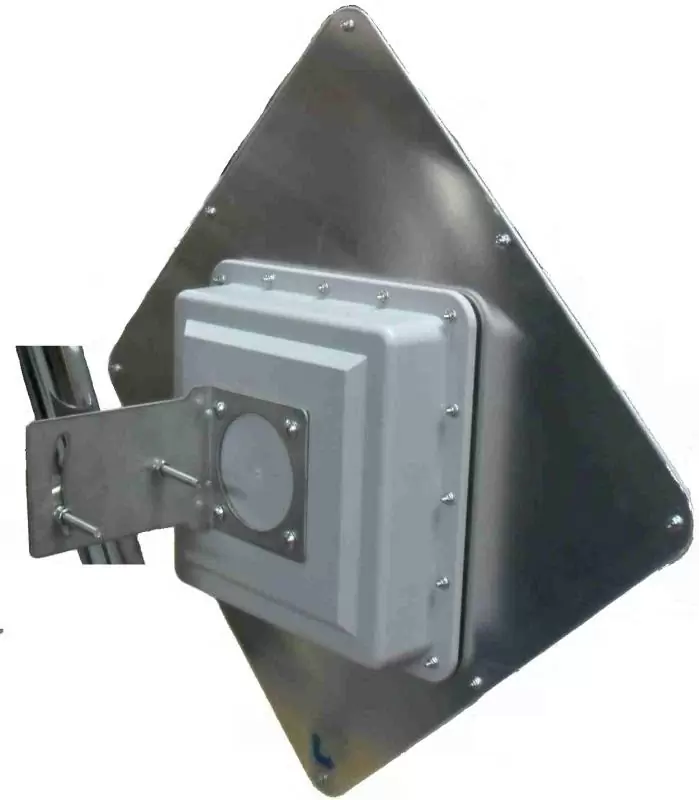

5.125GHz to 5.875GHz 23dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna5.125GHz to 5.875GHz 23dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna5.125GHz to 5.875GHz 23dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

Model No: PE-5158G23-V0SF0

  • Dimension: L375xW375xD85mm
  • Weight: 1.8 KG
  • Connector: custom choice
  • Beam-width: Horz.10 deg Vert.12 deg
INQUIRY

Applications:

  • 5.125GHz-5.875GHz Wimax and Wifi Band

  • IEEE 802.11a / 80216d / 80216e Wireless Lan

  • 23dBi Directional Dual port Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Jumper Cable can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiMAX / WiFi, WLAN /MIMO /

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating

  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

23 dBi

Polarization

Vertical or Horizontal

Maximum Power

10 Watts

Vertical Beam-width

12 Deg

Horizontal Beam-width

10 Deg

FBR Greater than 28 dB

Impedance

50 Ohm

Antenna Design

64(8x8) Patch Array

Internal Material

Taiwan FR4

RF Cable RG178 / RG174/ other
Connector I-PAX or MMCX or Other

Waterproof RJ45

20cm RJ45 Male

Length x Width(MAX)

375 x 375 mm

Diameter (MAX)

85 mm

Inside Length x Width(Least) 150 x 70mm (User Space)
Inside Diameter(Least) 25mm (User Space)

Antenna Weight (G.W)

400 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount and Wall Mount
Mount Pole 32mm to 50mm

Wind Survival

Greater than 180MPH

Storage Temperature -20 to +60
Operating Temperature -20 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
