Multi-frequency Antenna

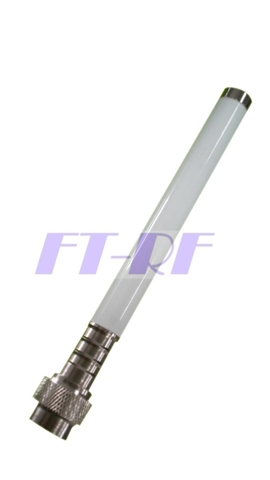

OI-8221M02A-NM

824 to 960MHz/ 1710 to 2170MHz 2dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)

  • Dimension: 198x13mm
  • Weight: 72g
  • Connector: N-Male
  • Beam-width : Horz.360Deg;
  • Vert. 824-960MHz: 29 Deg, 1710-2170Mhz: 26 Deg
View Details
OI-8221M03-NM

824 to 960MHz and 1710 to 2170MHz 3dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)

  • Model : OI-8221M03-NM
  • Dimension : 198x13mm
  • Weight : 85g
  • Connector : N-Male
  • Beam-width : Horz.360Deg
  • 824MHz to 960MHz: Vert.41Deg, 1710MHz to 2170Mhz: Vert.60Deg
View Details
OU-0721M03-NF

698MHz to 960MHz and 1710MHz to 2170MHz 2.5dBi/ 3.5dBi Multi-Frequency OmniDirectional Antenna

  • Dimension : 320x70x50mm
  • Weight : 150g
  • Connector : N-Female
  • Gain: 2.5dbi / 3.5 dBi
View Details

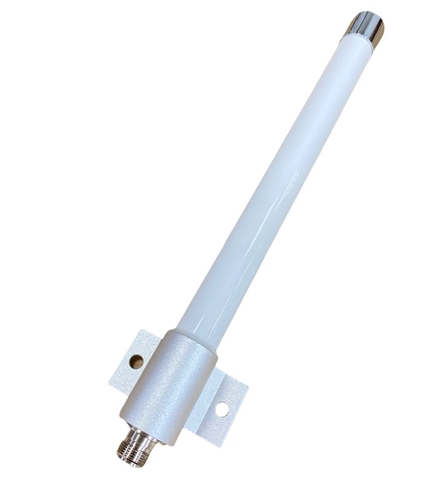

OU-8221M03-NF

824 to 960MHz and 1710 to 2170MHz 2.5dbi / 3.5dBi Five Band Omni Directional Outdoor Antenna N-Female

  • Dimension : 298x70x50mm
  • Weight : 150g
  • Connector : N-Female
  • Beam-width : Horz.360 deg
  • 824MHz to 960MHz : Vert.70 deg
  • 1710MHz to 2170MHz : Vert.47 deg
View Details

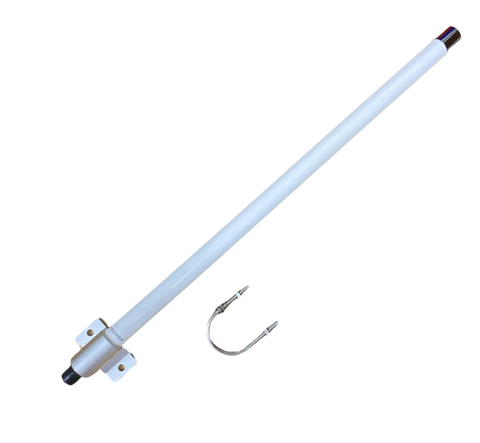

OU-8221M06-NF

824 to 960MHz and 1710 to 2170MHz 2dBi / 6dBi Multi-Frequency Band Omni Directional Outdoor Antenna N-Female

  • Dimension : 560x70x50mm
  • Weight : 350g
  • Connector : N-Female
  • Beam-width : Horz.360 deg
  • 824-960MHz : Vert.45Deg
  • 1710-2170MHz : Vert.19Deg
View Details

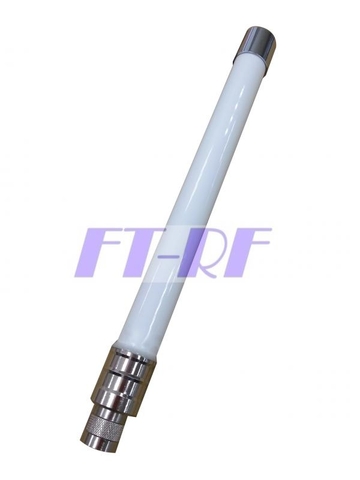

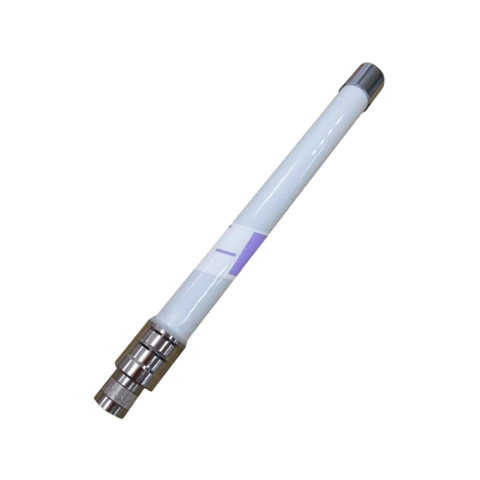

OU-8221M02S-NM

880 to 960MHz and 1710 to 2170MHz 2dBi Five Band Mini Omni Directional Outdoor Antenna (N-Male)

  • Dimension : 300x24mm
  • Weight : 180g
  • Connector : N-Male
  • -3dB Beamwidth : Horz.360 deg Vert.73 deg/ Vert. 47 deg
View Details

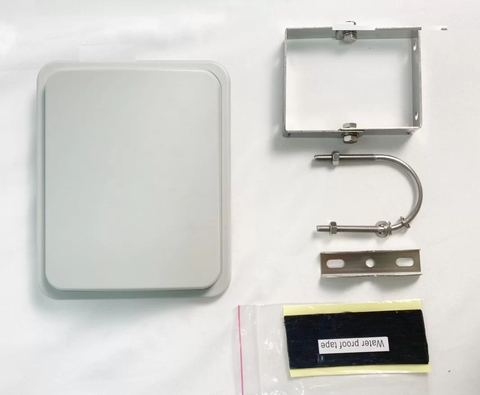

PI-245808-NF

2.4 GHz and 5.8GHz 8dBi Dual Band Panel Outdoor Antenna

  • Dimension: L180xW150xD45mm
  • Weight: 226g
  • Connector: N-Female
View Details

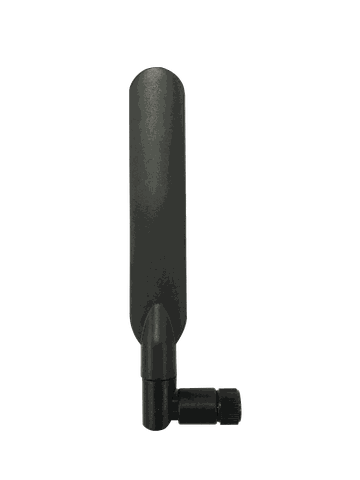

RU-245805-RSMB

2.4GHz and 5.8GHz 5dBi indoor Rubber RP-SMA-Male/ Female OMNI Directional Antenna

  • Dimension :163x22x12mm
  • Weight: 50g
  • Connector: RP-SMA Male
  • Beamwidth: Horz.360 Deg, Vert.2.4 GHz: 54 Deg/ 5.8GHz: 29 Deg
View Details
