170 to 225MHz

170MHz to 225MHz Omnidirectional Outdoor Antenna designing and manufacturing in Taiwan with an RF network analyzer and adjust the testing laboratory to ensure the stability and quality of our products.

With more than 15 years of experience in researching, developing, and manufacturing this line product. FT-RF Antennas are lightweight, easy to install, and design for a quick test, with an average gain and factor design and VSWR, can use for outdoor public areas. All our products have RoHs, WEEE compliance.

More than that, Antennas are constructed for all-weather operation, feature sealed collinear brass elements Array inside a durable UV-stable machine White fiberglass radome. Internal re-use waterproof silicone reinforced waterproof. These features allow them to be mounted in up or down positions. Each pcs antenna included a professional waterproofing tape for easy installation to solve the strengthening of water.
We also offer custom-designed antennas, please click <https://horn.ft-rf.com.tw/registration> and fill in our form, OR contact us: info-tw@ft168.com.tw

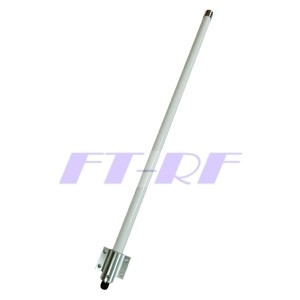

205MHz to 230MHz 3dBi Dipole Omni Directional Outdoor Antenna

Model : OA-205230M03-NF
Dimension : 1200x70x50mm
Weight : 870g
Connector : N-Female
Beam-with : Horz.360 deg Vert.65 deg

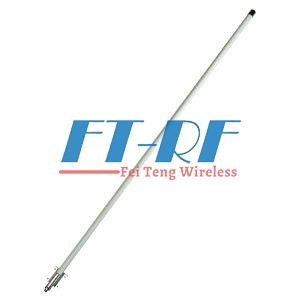

205MHz to 230MHz 5.5dBi Dipole Omni Directional Outdoor Antenna

Model : OA-205230M06-NF
Dimension : 2350x70x50mm
Weight : 1870g
Connector : N-Female
Beam-width : Horz.360 deg Vert.32 deg

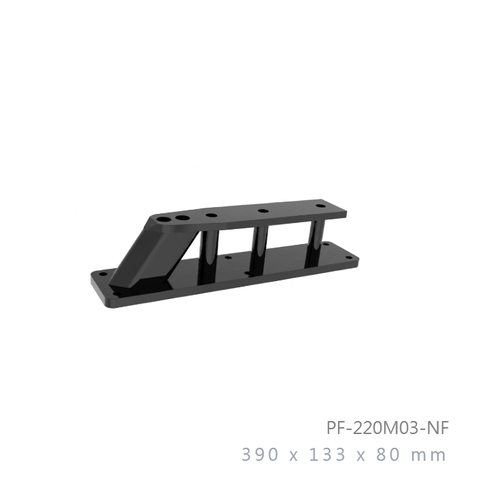

210MHz to 230MHz 3dBi PIFA Omni Directional Professional train Outdoor Antenna

Model : PF-220M03-NF
Dimension : 390x133x80mm
Weight : 2000g
Connector : N-Female
Beam-width : Horz.360 deg Vert.100 deg
