118 MHz to 174 MHz Frequency



118MHz to 174MHz Omnidirectional Outdoor Antenna designing and manufacturing in Taiwan with an RF network analyzer and adjusting the testing laboratory to ensure the stability and quality of our products.

With more than 30 years of experience in researching, developing, and manufacturing this line product. FT-RF Antennas are lightweight, easy to install, and design for a quick test, with an average gain and factor design and VSWR, can use for outdoor public areas. All our products have RoHs, WEEE compliance.

More than that, Antennas are constructed for all-weather operation, feature sealed collinear brass elements Array inside a durable UV-stable machine White fiberglass radome. Internal re-use waterproof silicone reinforced waterproof. These features allow them to be mounted in up or down positions. Each pcs antenna included a professional waterproofing tape for easy installation to solve the strengthening of water.
We also offer custom-designed antennas, please contact us: info-tw@ft168.com.tw

YA-158178M12-NF

158 MHZ to 178 MHZ 12dBi Yagi Directional Outdoor Antenna

  • Dimension: 920x3200x111.9mm
  • Weight: 5 Kg
  • Connector: N-Female
  • Beam-width: Horz. 49 deg Vert.42 deg

In stock

View Details
OA-155M05-NF

152 MHz to 158 MHz 5dBi Omni Antenna

  • Dimension: 2800x70x50mm
  • Weight: 3Kg
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.38 deg
View Details
OA-155165M03-NF

155 MHz to 165 MHz 3dBi Dipole Omni Directional Outdoor Antenna

  • Dimension: 1400x70x50mm
  • Weight: 920g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.65 deg
View Details
OA-165180M03-NF

165 MHz to 180 MHz 3dbi Omni Antenna

  • Dimension: 1350x70x50mm
  • Weight: 900g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.65 deg
View Details
YA-144166M06-NF

144 MHz to 162 MHz 6dBi Yagi Directional Outdoor Antenna

  • Dimension: 600mmx920x135mm
  • Weight: 1300g
  • Connector: N-Female
  • Beam-width: Horz.100 deg Vert.60 deg
View Details
YA-144166M08-NF

144 MHz to 162 MHz 8dBi Yagi Directional Outdoor Antenna

  • Dimension: 1200mmx920x135mm
  • Weight: 2400g
  • Connector: N-Female
  • Beam-width: Horz.62 deg Vert.64 deg
View Details

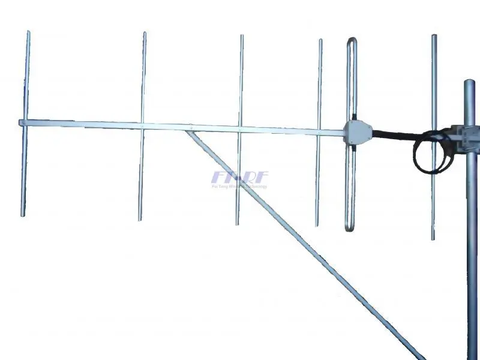

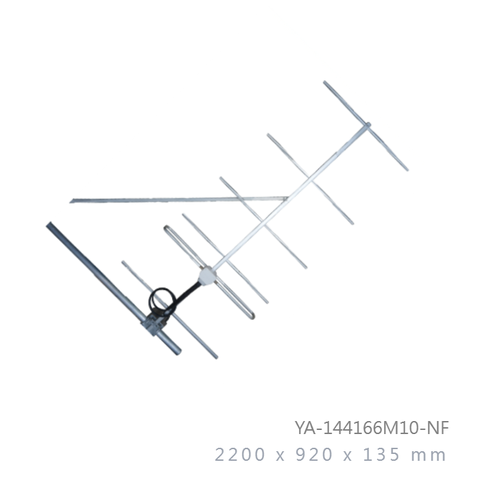

YA-144166M10-NF

144 MHz to 162 MHz 10dBi Yagi Directional Outdoor Antenna

  • Dimension: 2200mmx920x135mm
  • Weight: 3500g
  • Connector: N-Female
  • Beam-width: Horz.49 deg Vert.57 deg
View Details

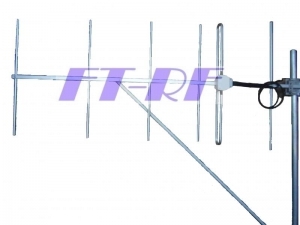

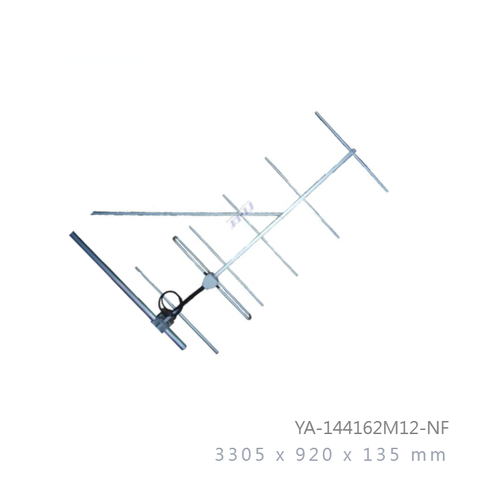

YA-144162M12-NF

144 MHz to 162 MHz 12.5dBi Yagi Directional Outdoor Antenna

  • Dimension: 3350mmx920x135mm
  • Weight: 7300g
  • Connector: N-Female
  • Beam-width: Horz.42 deg Vert.43 deg.
View Details
