3.3 GHz to 3.8 GHz

Wimax, 5G,6G

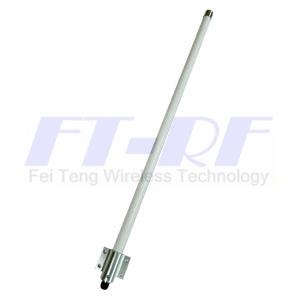

OA-343608-NF

3.4 to 3.6GHz 8dBi Omni directional antenna for outdoor installation

  • Dimensions: 400x70x50mm
  • Weight: 400g
  • Connector: N-Female
  • Beam-width: Horz.360 Deg Vert.15 Deg
View Details
OA-343610-NF

3.4 to 3.6GHz 10dBi Omni directional antenna for outdoor installation

  • Dimensions: 600x70x50mm
  • Weight: 530g
  • Connector: N-Female
  • Beam-width: Horz.360 Deg Vert.10 Deg
View Details

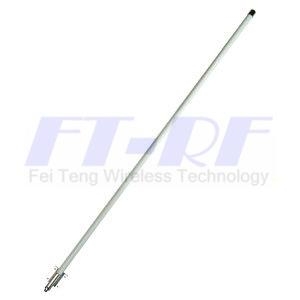

OA-343612-NF

3.4 to 3.6GHz 12dBi Omni directional antenna for outdoor installation

Dimensions: 800x70x50mm
Weight: 750g
Connector: N-Female
Beam-width: Horz.360 Deg Vert.8 Deg

View Details
OA-343615-NF

3.4 to 3.6GHz 15dBi Omni directional antenna for outdoor installation

  • Dimensions: 1150x70x50mm
  • Weight: 950g
  • Connector: N-Female
  • Beam-width: Horz.360 Deg Vert.6 Deg
View Details

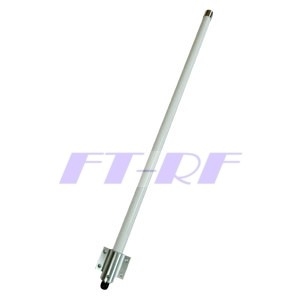

OA-333815-NF

3.3 to 3.8GHz 15dBi OMNI Antenna

  • Dimensions: 1094x70x50mm
  • Weight: 710g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.9deg
View Details
PAD-333818BA-XXXX-HV

3.3GHz-3.8GHz 18dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna

  • Dimension: L375xW375xD85mm
  • Weight: 1.85 KG
  • Connector: Custom choice
  • Beam-width: Port1:Horz.16 deg Vert.15 deg
  • :port2 Horz.15 deg Vert.14deg
View Details
PA-333814BA-XXXX

3.3GHz-3.8GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Horz.28 deg Vert.28 deg
View Details
PAD-333813BA-XXXX-HV

3.3GHz-3.8GHz 13dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Port1:Horz.25 deg Vert.24 deg
  • Port2 Horz.24 deg Vert.23 deg
View Details
PA-333810BA-XXXXX

3.3GHz-3.8GHz 9.5dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimensions: L265xW120xD50mm
  • Weight: 0.6 KG
  • Connector: Custom choice
  • Beam-width: Horz.62 deg Vert.38 deg
View Details
PA-333810-NF

3.3 to 3.8GHz 10dbi Panel Antenna

  • Dimensions: 180x150x25mm
  • Weight: 220g
  • Connector: N-Female
  • Beam-width: Horz.56 Deg Vert.52 Deg
View Details
PA-333812-NF

3.3 to 3.8GHz 12dbi Panel Antenna

  • Dimensions: 230x230x21mm
  • Weight: 150g
  • Connector: N-Female
  • -3dB Beamwidth: Horz.31deg Vert.57deg
View Details
PA-333816-NF

3.3 to 3.8GHz 16dbi Panel Antenna

  • Dimensions: 270x270x45mm
  • Weight: 1030g
  • Connector: N-Female
  • Beam-width: Horz.25 Deg Vert.25 Deg
View Details
