824 MHz to 896 MHz Frequency (LoRa EU868)


868 MHz LoRa antenna (as known as LoRa EU868) which has long-range coverage while maximizing radio spectrum use is provided by the FT-RF fiberglass Omnidirectional outdoor antenna, which operates in the 824 to 896MHz frequency band with various strength levels.

- The UV-resistant fiberglass shell enables all-weather operation.

- For lightning protection, it is made of copper elements and coupled to the DC ground potential.

- Any type and length of cable can be terminated with a female N-Type connector.

- EU868, RFID, WLAN, ISM BAND, Mobile, 4G, ETC,868MHz

Fiberglass IoT Antennas for ISM 868MHz are used to make LoRa 868mhz antennas. It's an omnidirectional outdoor antenna with different strength levels ranging from 2 to 12 dBi. They are long-lasting and simple to install (on a wall or pole).
The OA-868M series, often known as EU868 (for the European market), is a license-free ISM band with a core frequency of 868MHz. The omnidirectional antenna employs an advanced collinear dipole design, which means it radiates uniformly in the azimuth with a high gain across long distances, reducing the number of cells or nodes required in a network.
EU868 can work in a variety of environments for up to 12 years thanks to its UV-resistant construction.
The connector can be customized based on a minimum order quantity. There are a variety of frequencies and gains that can choose from.

We offer a variety of high-performance antennas for Global LoRaWAN, including LoRa antenna EU868, US915, or AS923 MHz LoRa Antenna ( for Singapore, Malaysia, Taiwan market...) ... Our product line includes both durable outdoor antennas and indoor high-performance dipole antennas that are suitable for a variety of LoRa applications, including Helium hotspot support.

This range of products are including:

868MHz series (LoRa EU868)

- 828MHz series (824MHz-896MHz frequency range)

- 821MHz series (multi-frequency range 824-960MHz and 1710-2170MHz)

OA-868M03-NF

868MHz 3dBi Omni Directional Outdoor Antenna (EU868)

  • Dimension : 320x70x50mm
  • Weight : 330g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.75 deg
View Details
OA-868M05C-NF

860 MHz to 870 MHz 5dBi Omnidirectional Outdoor Antenna Spring Designed (EU868)

  • Dimension : 745x70x50mm
  • Weight : 392g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.26 deg
View Details
OA-868M05-NF

868 MHz LoRa Antenna 5dBi (LoRa EU868)

  • Dimension: 1094x70x50mm
  • Weight : 654.7g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.16 deg
View Details
OA-868M06C-NF

860 MHz to 870 MHz 6dBi Omni Directional Antenna Spring designed (EU868)

  • Dimension : 1095x70x55mm
  • Weight : 481g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.20 deg
View Details
OA-868M06-NF

868 MHz 6dBi Omni Directional Outdoor Antenna (EU868)

  • Dimension : 1095x70x50mm
  • Weight : 586g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.25 deg
View Details
OS-868M03-NM

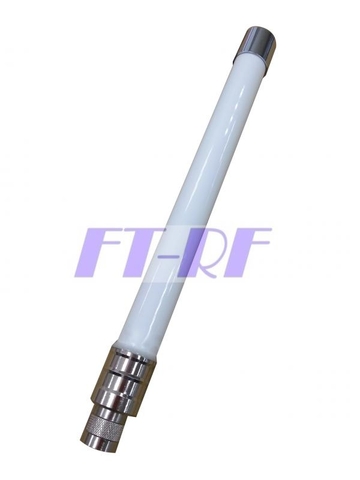

868MHz 3dBi Mini Omni Directional Outdoor Antenna (N-Male)

  • Dimension : 295x20x20mm
  • Weight : 180g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.110 deg
View Details
OA-868M07-NF

868MHz 7dBi Omni Directional Outdoor Antenna (EU868)

  • Model : OA-868M07-NF
  • Dimension : 1500x70x55mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.11 deg
View Details
OA-868M08-NF

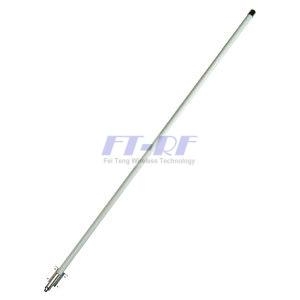

868 MHz LoRa Antenna 8dBi (LoRa EU868)

  • Dimension : 1475x70x50mm
  • Weight : 1070g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.13 deg
View Details
OA-868M09-NF

860 MHz to 870 MHz 9dBi Omni Directional Outdoor Antenna

  • Dimension : 1750x70x50mm (Update Version)
  • Weight : 800g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.17 deg
View Details
OA-868M07C-NF

860 MHz to 870 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (EU868) N-Female

  • Dimension : 1235x70x55mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert. deg
View Details
OA-868M10-NF

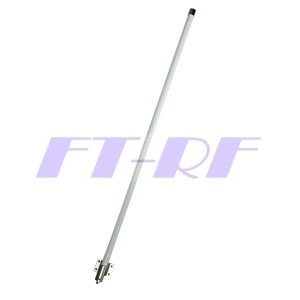

860 MHz to 870 MHz 10dBi Omni Directional Outdoor Antenna

  • Dimension : 2240x70x50mm
  • Weight : 994g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.17 deg
View Details
OA-868M12-NF

860MHz-870MHz 12dBi Omni Directional Outdoor Antenna (LoRa Antenna)

  • Dimension : 2240x70x50mm
  • Weight : 994g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.8 deg
View Details
