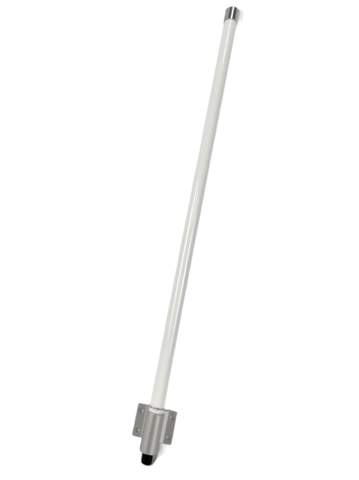

868 MHz LoRa Antenna (EU868)



Fei Teng Wireless 868 Mhz LoRa antennas are Omnidirectional outdoor antenna, which operates in the 824 to 896MHz frequency band and a center frequency of 868MHz - it's also known as EU868 (suitable for EU market)

- The UV-resistant fiberglass shell enables all-weather operation.

- Any type and length of cable can be terminated with an N-Type connector.

- Helium miner, Helium hotspot, RFID, WLAN, ISM BAND,868MHz Application

It's an omnidirectional outdoor antenna with different strength levels ranging from 2 to 12 dBi. The antennas are simple to install.

Please visit here to know the correct way to install LoRa Antenna Installation.

The OA-868M series, often known as EU868 (for the European market), is a license-free ISM band with a core frequency of 868MHz. The omnidirectional antenna employs an advanced collinear dipole design, which means it radiates uniformly in the azimuth with a high gain across long distances, reducing the number of cells or nodes required in a network.

Model

Power

Gain (dBi)

Dimension (mm) Weight (g) Connector

OA-868M03-NF

100W

3

320x70x50 330 N-Type Female

OA-868M04-NF

50W

4

670x70x55mm 513 N-Type Female

OA-868M05-NF

50W

5

820x70x55mm 654 N-Type Female
OA-868M05C-NF 50W 5 745x70x55mm 392 N-Type Female

OA-868M06-NF

50W

6

1200x70x50mm 586 N-Type Female
OA-868M06C-NF 50W 6 915+-30x70x55mm 481 N-Type Female

OA-868M07-NF

50W

7

1300x70x55mm 780 N-Type Female
OA-868M07C-NF 50W 7 1235x70x55 600 N-Type Female

OA-868M08-NF

50W

8

1475x70x50mm 1070 N-Type Female

OA-868M09-NF

100W

9

1614+-30x70x50mm 920 N-Type Female

OA-868M10-NF

100W

10

2240x70x50mm 994 N-Type Female

OA-868M12-NF

100W

12

2240x70x50mm 994 N-Type Female

OS-868M03-NM

200W

3

295x20x20mm 180 N-Type Male
OA-868M03-NF

868MHz 3dBi Omni Directional Outdoor Antenna (EU868)

  • Dimension : 320x70x50mm
  • Weight : 330g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.75 deg
View Details
OA-868M04-NF

868 MHz to 870 Mhz 4dBi Omnidirectional Outdoor Antenna (EU868)

  • Dimension : 840x70x55mm
  • Weight : 420g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.27 deg
View Details
OA-868M05C-NF

860 MHz to 870 MHz 5dBi Omnidirectional Outdoor Antenna Spring Designed (EU868)

  • Dimension : 745x70x50mm
  • Weight : 392g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.26 deg
View Details
OA-868M05-NF

868 MHz LoRa Antenna 5dBi (LoRa EU868)

  • Dimension: 1094x70x50mm
  • Weight : 654.7g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.16 deg
View Details
OA-868M06C-NF

860 MHz to 870 MHz 6dBi Omni Directional Antenna Spring designed (EU868)

  • Dimension : 1095x70x55mm
  • Weight : 481g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.20 deg
View Details
OA-868M06-NF

868 MHz 6dBi Omni Directional Outdoor Antenna (EU868)

  • Dimension : 1095x70x50mm
  • Weight : 586g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.25 deg
View Details

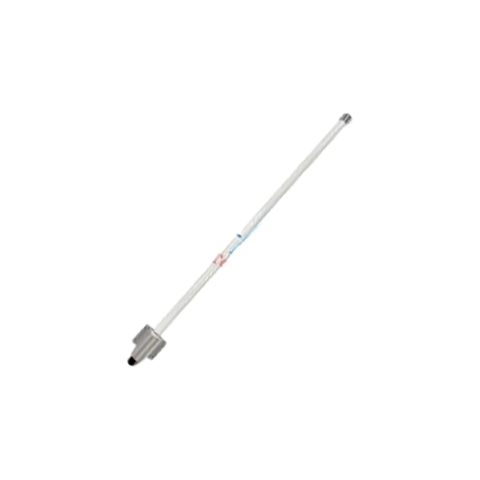

OA-868M07C-NF

860 MHz to 870 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (EU868) N-Female

  • Dimension : 1235x70x55mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert. deg
View Details
OA-868M07-NF

868MHz 7dBi Omni Directional Outdoor Antenna (EU868)

  • Model : OA-868M07-NF
  • Dimension : 1500x70x55mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.11 deg
View Details

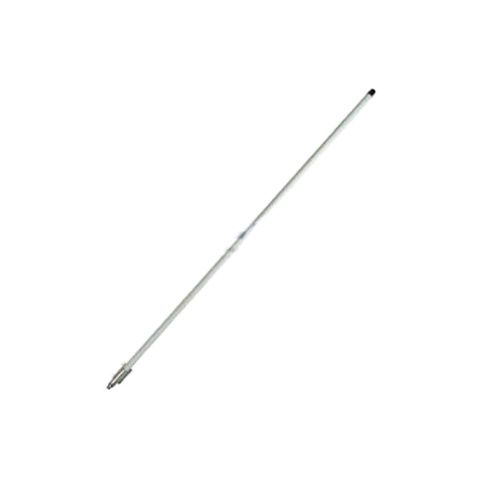

OA-868M08-NF

868 MHz LoRa Antenna 8dBi (LoRa EU868)

  • Dimension : 1475x70x50mm
  • Weight : 1070g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.13 deg
View Details
OA-868M09-NF

860 MHz to 870 MHz 9dBi Omni Directional Outdoor Antenna

  • Dimension : 1750x70x50mm (Update Version)
  • Weight : 800g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.17 deg
View Details
OA-868M10-NF

860 MHz to 870 MHz 10dBi Omni Directional Outdoor Antenna

  • Dimension : 2240x70x50mm
  • Weight : 994g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.17 deg
View Details

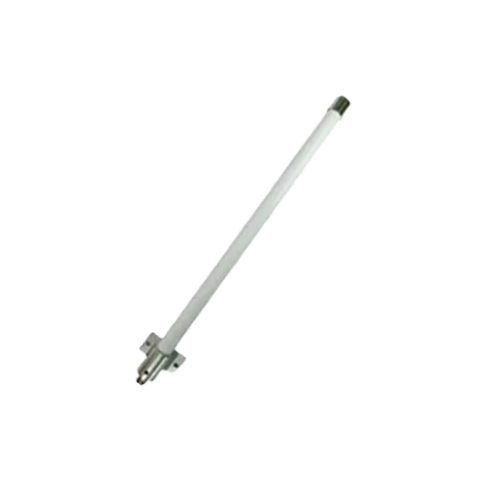

OA-868M12-NF

860MHz-870MHz 12dBi Omni Directional Outdoor Antenna (LoRa Antenna)

  • Dimension : 2240x70x50mm
  • Weight : 994g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.8 deg
