5.1GHz to 5.9GHz Omni Directional Antenna



WiMAX, WiFi, IEEE 802.11, Wireless LAN, 5.8GHz UNII mid-ISM Applications, 5G, Unlicensed European 5.4 GHz Band Applications

OA-485003-NF

4.8 to 5.0GHz 3dbi Omni Outdoor Antenna

  • Dimensions: 185x70x50mm
  • Weight: 350g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.68 deg
View Details
OA-485005-NF

4.8 to 5.0GHz 5dbi Omni Outdoor Antenna

  • Dimension: 330x70x50mm
  • Weight: 385g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.30 deg
View Details
OA-485008-NF

4.8 to 5.0GHz 8dbi Omni Outdoor Antenna

  • Dimensions: 385x70x50mm
  • Weight: 430g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.11 deg
View Details
OA-485010-NF

4.8 to 5.0GHz 10dbi Omni Outdoor Antenna

  • Dimensions: 460x70x50mm
  • Weight: 470g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.9 deg
View Details
OA-485012-NF

4.8 to 5.0GHz 12dbi Omni Outdoor Antenna

  • Dimensions: 610x70x50mm
  • Weight: 540g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.8 deg
View Details
OA-485015-NF

4.8 to 5.0GHz 15dbi Omni Outdoor Antenna

  • Dimensions: 780x70x50mm
  • Weight: 600g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.5 deg
View Details
OI-496205-NF

4.9 GHz to 6.2 GHz 5dbi Outdoor Super Mini Omni Directional Antenna (N-Female)

  • Dimensions: 165x20mm
  • Weight: 60g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.21 deg
View Details

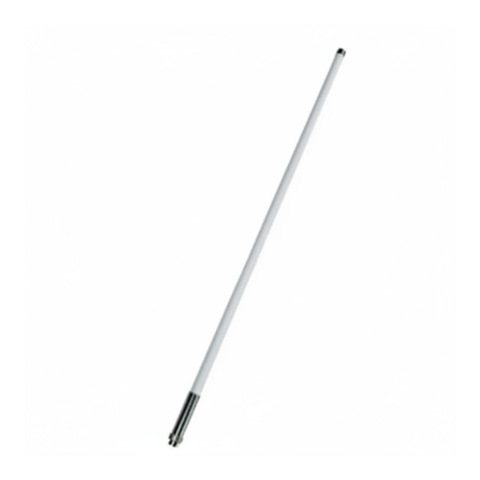

OS-515915-NM

5.125 GHz to 5.875 GHz 15dbi Mini Omni directional Outdoor Antenna (N-Male)

Made in Taiwan
Freq. Range: 5.1 - 5.8 GHz
Antenna Type: Mini Omni
Gain: 15 dBi
Connector: N-Male
Length: 750 mm
📄 DATASHEET
View Details
OS-515903-NM

5.125 GHz-5.875 GHz 3dbi Mini Omni directional Outdoor Antenna (N-Male)

  • Dimensions: 160x20x20mm
  • Weight: 131g
  • Connector: N-Male
  • Beam-width: Horz.360 deg Vert.70 deg
View Details
OS-515905-NM

5.125GHz-5.875GHz 5dbi Mini Omni directional Outdoor Antenna (N-Male)

Made in Taiwan
Freq. Range: 5.1 - 5.8 GHz
Antenna Type: Mini Omni
Max Gain: 5 dBi
Connector: N-Male
Dimensions: 250 x 20 mm
📄 DATASHEET
View Details
OI-496205-NM

4.9 GHz to 6.2 GHz 5dbi Outdoor Super Mini Omni Directional Antenna (N-Male)

  • Dimensions: 120x13mm
  • Weight: 45g
  • Connector: N-Male
  • Beam-width: Horz.360 deg Vert.21 deg
View Details

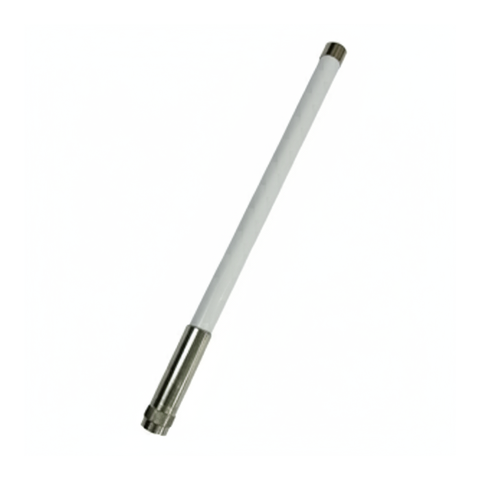

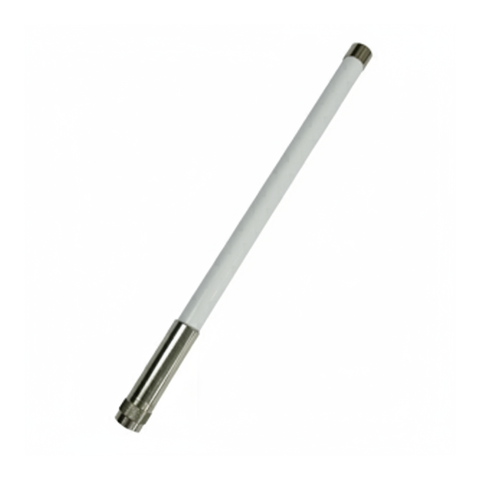

OS-515906-NM

5.125 GHz to 5.875 GHz 6dbi Mini Omni directional Outdoor Antenna (N-Male)

Made in Taiwan
Freq. Range: 5.1 - 5.8 GHz
Antenna Type: Mini Omni
Max Gain: 6 dBi
Connector: N-Male
Dimensions: 280 x 20 mm
View Details
