Description
|
Frequency Range |
DC to 6GHz |
|---|---|
|
V.S.W.R(MAX) |
1.5 |
| Return Loss (Min) | -14dB |
|
Impedance |
50 Ohms |
|
Max Withstanding Current@8/20uS |
10KA |
|
DC Breakdown Voltage@100V/S |
184-276V (100V/S) |
|
Impulse Breakdown Voltage@1KV/uS |
450V-500V (1KV/uS) |
| Insulation Resistance( Min) | 2000 Megohms |
| Capactance 1MHz Pf (MAX) | 1 pF |
| DC Holdover Voltage per ITU-T K. 12 | 135V |
| Working Temperature | -40 deg Cto 85 deg C |
|
Gas Tube Insulation Resistance At 100Vdc |
10G Ohms (10 Vdc) |
|
Weight |
130g |
| Dimension | 67x24.8x35 |
|
Insertion Loss (MAX) |
DC to 3GHz 0.35dB 3GHz to 6GHz 0.9dB |

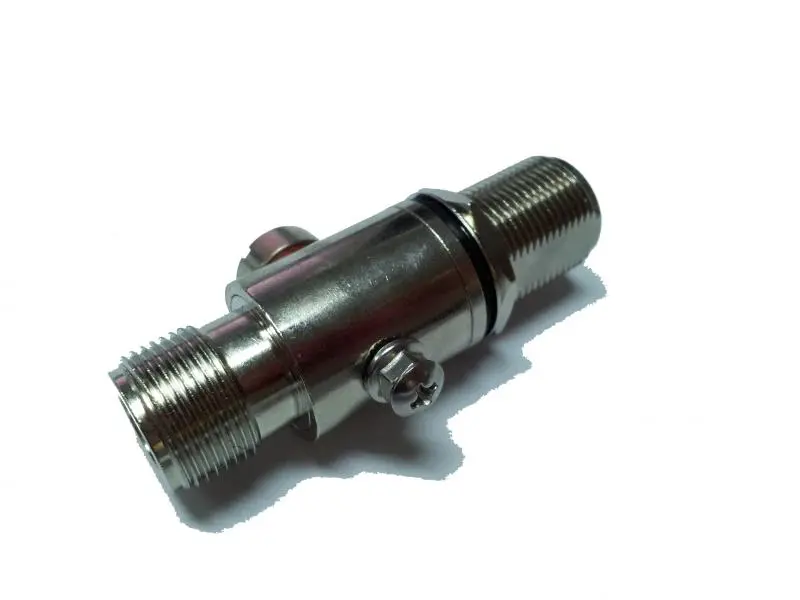

| Connector | N-Female to N-Female Bulkhead |
