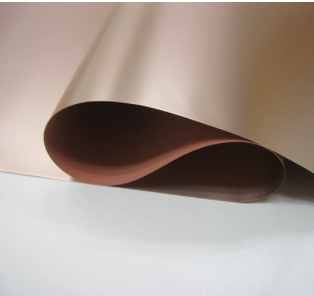

NP-536HC

Model No: NP-536HC

Datasheet:Download

  • Low dielectric constant and low dissipation factor at high-frequency range
  • High thermal conductivity
  • Excellent dimensional stability
  • Greater design flexibility by allowing the same impedance
  • Suit for Antenna、PA and LNB application
  • Manufacturer: Nan Ya Plastic
INQUIRY
  • Low dielectric constant and low dissipation factor at high frequency range
  • High thermal conductivity
  • Excellent dimensional stability
  • Greater design flexibility by allowing the same impedance
  • Suit for Antenna、PA and LNB application

Specifications

Characteristics

Unit

Conditioning

Typical Values

SPEC

Test Method

Permittivity

Process

-

10GHz/23℃

3.76

-

2.5.5.5

Design

-

3.66

Differential

phase length

Loss Tangent

-

10GHz/23℃

0.0032

-

2.5.5.5

0.0030

SPDR

Volume resistivity

MΩ-cm

C-96/35/90

4x 108~5 x 109

106 h

2.5.17

Surface resistivity

C-96/35/90

6 x 107~6 x 108

104 h

2.5.17

Arc resistance

SEC

D-48/50+D-0.5/23

450h

60 h

2.5.1

Dielectric breakdown

KV

D-48/50

60 h

40 h

2.5.6

Moisture absorption

%

D-24/23

0.008~0.015

0.35 i

2.6.2.1

Flammability

-

C-48/23/50

94V0

94V0

UL94

Peel strength 1 oz

lb/in

288℃x10” solder floating

5~7

-

2.4.8

Thermal stress

SEC

288℃ dipping

300 h

10 h

2.4.13.1

Pressure cooker 2 hr

(2 atm 121)

SEC

288℃ dipping

300 h

N/A

-

Dimensional stability X-Y axis

%

E-0.5/170

0.008-0.018

0.050 i

2.4.39

Coefficient of thermal expansion

Z-axis before Tg



ppm/℃



TMA



30-60

N/A

2.4.24

Td (5% weight loss)

TGA, 10℃/min

410

325 h

-

Thermal conductivity

W/m.k

E-0.5/120

0.70

N/A

ASTM D5470
